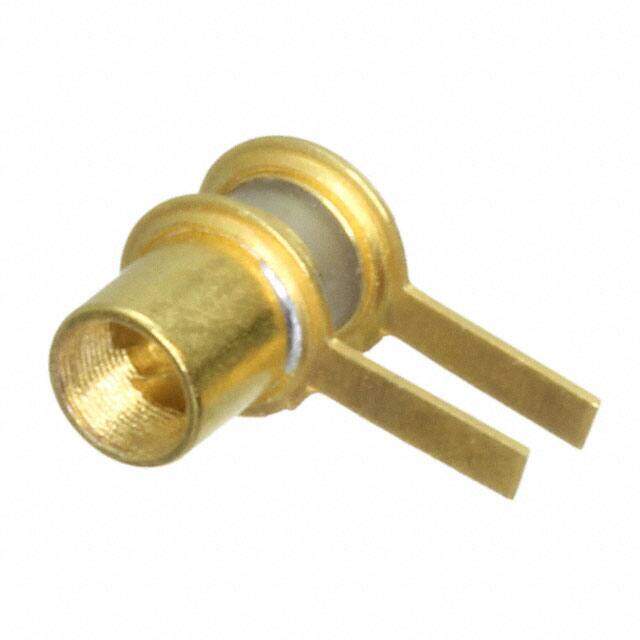

GNC2R500 image
Favorite
GNC2R500 image
Favorite

GNC2R500

Sprague-Goodman
RoHS
RoHS RoHS compliant
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description Trimmer / Variable Capacitors 350+/-100ppm.4-2.5pF
PDF
/
Buying Options
Total Price: USD $28.2
Unit Price: USD $28.1952
≥1 USD $28.1952
≥10 USD $27.64168
≥100 USD $27.088864
Inventory: 141
Minimum: 1
-
+

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Sapphire

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2002
Series PISTONCAP?
Size / Dimension 0.118Dia 3.00mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8532.30.00.90
Voltage - Rated DC 500V
Lead Pitch 2.032mm
Capacitor Type VARIABLE CAPACITOR
Q @ Freq 3000 @ 250MHz
Adjustment Type Side
Capacitance Range 0.4pF~2.5pF
Adjuster Orientation HORIZONTAL
Multi-turn 1

Dimensions

Height 5.842mm
Height Seated (Max) 0.230 5.80mm

Compliance

RoHS Status RoHS Compliant
