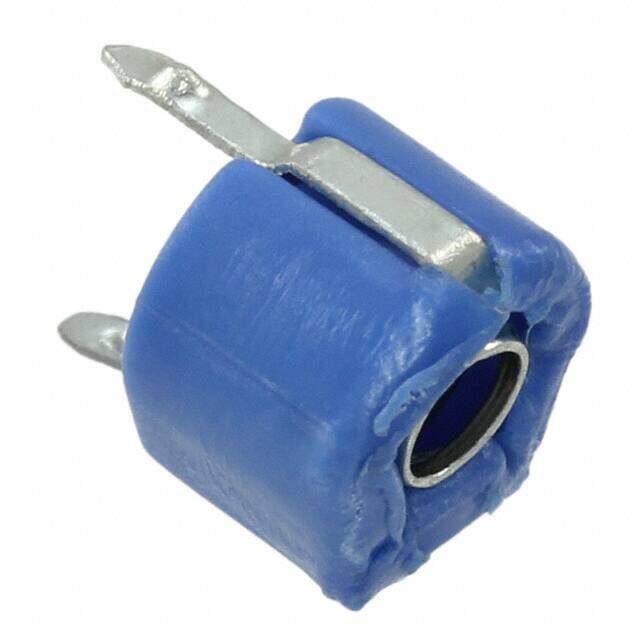

GKG3R015
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR SURFTRIM? GKG 100V 1pF~3pF 0.236Dia 6.00mm
PDF
/
Buying Options
Total Price: USD $3.41
Unit Price: USD $3.4056
≥1 USD $3.4056
≥10 USD $3.32728
≥100 USD $3.263744
≥500 USD $3.168
Inventory: 979
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 5.08mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 1pF~3pF
Adjustment Type Top
Q Factor 300
Q @ Freq 300 @ 1MHz
Size Code 2424
Capacitor Type VARIABLE CAPACITOR
Lead Pitch 6.096mm
Terminal Pitch 5mm
Voltage - Rated DC 100V
ECCN Code EAR99
Termination Snap in
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.236Dia 6.00mm
Series SURFTRIM? GKG
Published 2005
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Dielectric Material Ceramic
Terminal Shape WIRE
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
