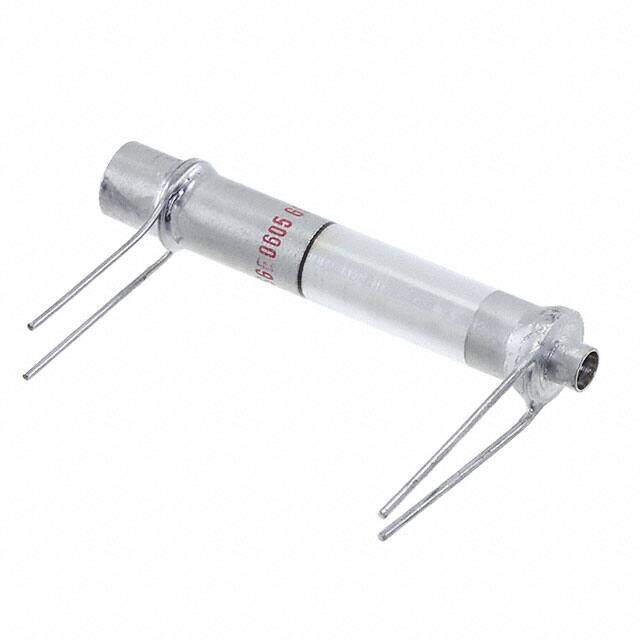

GHN38000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIM 0.8-38PF 750V THRU HOLE
PDF
/
Buying Options
Total Price: USD $36.12
Unit Price: USD $36.1152
≥1 USD $36.1152
≥10 USD $35.761
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape WIRE
Dielectric Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2013
Series PISTONCAP?
Size / Dimension 0.312Dia 7.92mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 750V
HTS Code 8532.30.00.10
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 750V
Q @ Freq 500 @ 20MHz
Adjustment Type Side
Capacitance Range 0.8pF~38pF
Adjuster Orientation HORIZONTAL
Multi-turn 1
Dimensions
Height Seated (Max) 1.640 41.66mm
Compliance
RoHS Status RoHS Compliant
