GER14000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

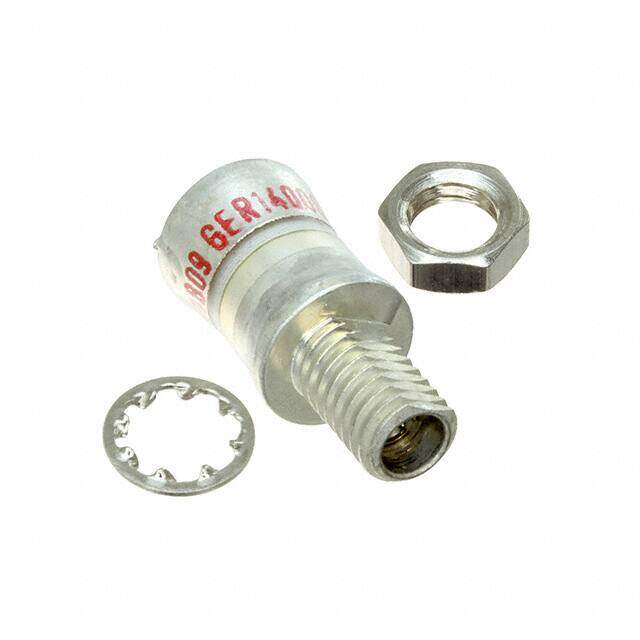

CAP TRIMMER 1-14PF 1000V
PDF
/
Buying Options
Total Price: USD $33.65
Unit Price: USD $33.6512
≥1 USD $33.6512
≥10 USD $32.97888
≥100 USD $32.306032
Inventory: 145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type User Defined
Surface Mount NO
Terminal Shape BINDING POST
Mounting Feature PANEL MOUNT
Dielectric Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series PISTONCAP?
Size / Dimension 0.312Dia 7.92mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 1000V
Additional Feature SEALED
HTS Code 8532.30.00.10
Reference Standard MIL-C-14409B
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 1000V
Q @ Freq 500 @ 20MHz
Adjustment Type Top
Capacitance Range 1pF~14pF
Multi-turn 1
Dimensions
Height Seated (Max) 0.469 11.91mm
Compliance
RoHS Status RoHS Compliant
