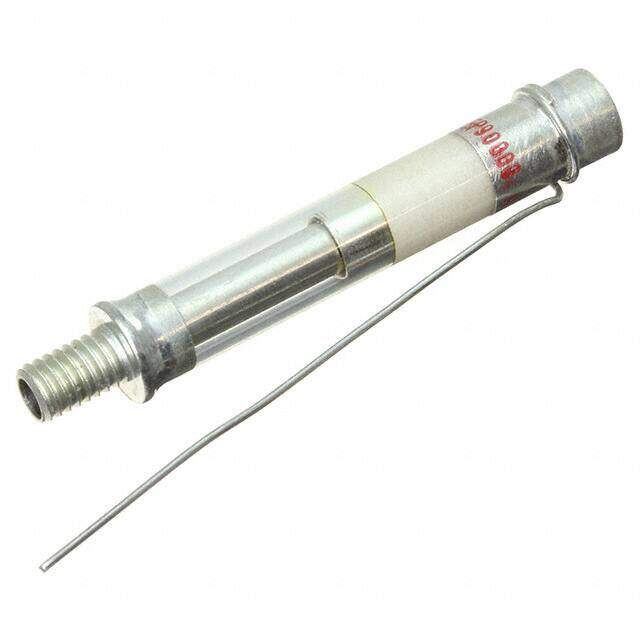

GEP90000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIM 1-90PF 750V PNL MOUNT
PDF
/
Inventory: 2776
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape WIRE
Dielectric Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2013
Series PISTONCAP?
Size / Dimension 0.312Dia 7.92mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 750V
HTS Code 8532.30.00.10
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 750V
Q @ Freq 250 @ 20MHz
Adjustment Type Top
Capacitance Range 1pF~90pF
Multi-turn 1
Dimensions
Height Seated (Max) 1.672 42.47mm
Compliance
RoHS Status RoHS Compliant
Alternative Model
