GAA3R513
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

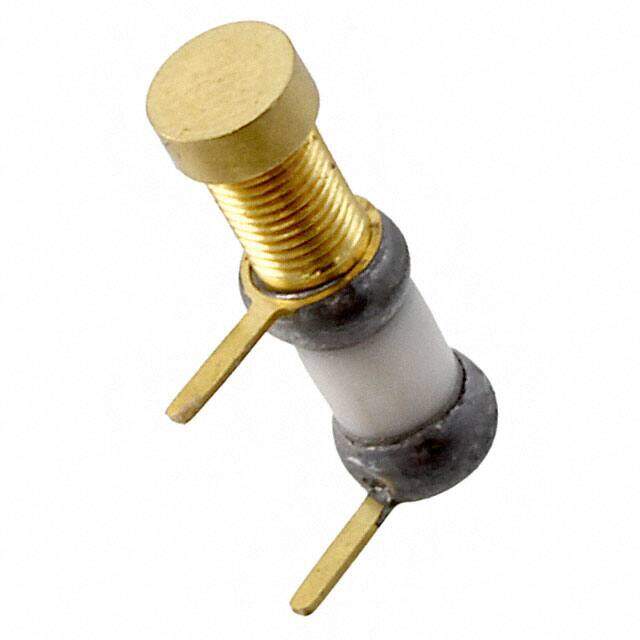

Trimmer / Variable Capacitors 0.35 - 3.5pF 250 VDC
PDF
/
Buying Options
Total Price: USD $29.08
Unit Price: USD $29.084
≥1 USD $29.084
≥10 USD $28.50408
≥100 USD $27.922576
Inventory: 495
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 12.4mm
Diameter 4.1mm
Technical
Multi-turn 1
Adjuster Orientation HORIZONTAL
Capacitance Range 0.35pF~3.5pF
Adjustment Type Side
Q @ Freq 5000 @ 100MHz
Capacitor Type VARIABLE CAPACITOR
Lead Pitch 6.35mm
Reference Standard MIL-C-14409
Voltage - Rated DC 250V
HTS Code 8532.30.00.90
ECCN Code EAR99
Termination Lug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.161Dia 4.10mm
Series AIRTRIM? GAA
Published 2000
Packaging Bulk
Operating Temperature -65°C~125°C
Physical
Dielectric Material Air
Terminal Shape WIRE
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
