TZC3R100A110B00
RoHS
/
Package B
Category Capacitors / Trimmers, Variable Capacitors
Description

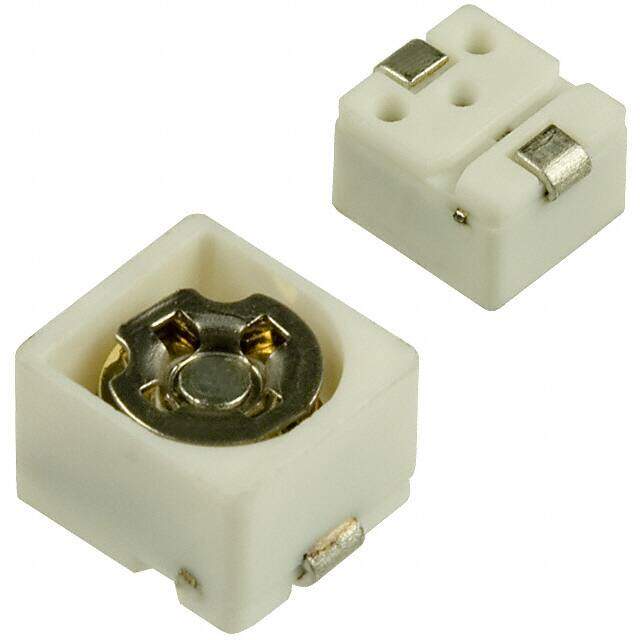

B variable capacitor 300ppm/C 50% 10pF 100V
PDF
/
Inventory: 7747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 3.2004mm
Length 4.4958mm
Height Seated (Max) 1.7018mm
Height 1.6002mm
Technical
Adjuster Orientation VERTICAL
Test Frequency 1MHz
Voltage 100V
Size Code 1812
Voltage - Rated AC 100V
Depth 4.5mm
Voltage - Rated DC 100V
Capacitance 10pF
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
Color White
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Terminal Finish Silver (Ag)
Temperature Coefficient 300 ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Pbfree Code yes
Feature General Purpose
JESD-609 Code e4
Tolerance 50%
Physical
Dielectric Material Ceramic
Terminal Shape WRAPAROUND
Package / Case B
Mount Surface Mount
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 3 weeks ago)
