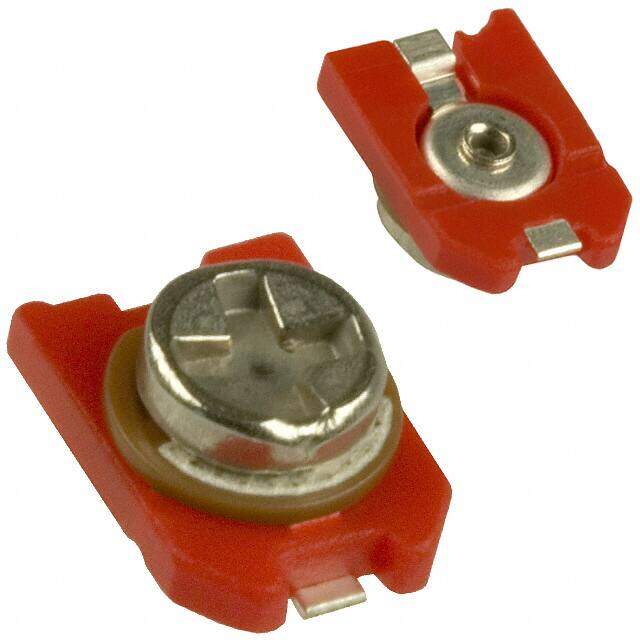

TZC3P200A310R00
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Capacitors / Trimmers, Variable Capacitors
Description
SMD/SMT VARIABLE CAPACITOR TZC3 100V 5pF~20pF 50% 500ppm/C
PDF
/
Inventory: 1152
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.067 1.70mm
Height 1.6002mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 5pF~20pF
Adjustment Type Top
Q @ Freq 300 @ 1MHz
Capacitor Type VARIABLE CAPACITOR
Depth 4.5mm
Packing Method TR, 7 INCH
Voltage - Rated DC 100V
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
Color Red
Terminal Finish Silver (Ag)
Temperature Coefficient 500 ppm/°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Feature General Purpose
JESD-609 Code e4
Tolerance 50%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series TZC3
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Dielectric Material Ceramic
Terminal Shape WRAPAROUND
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
