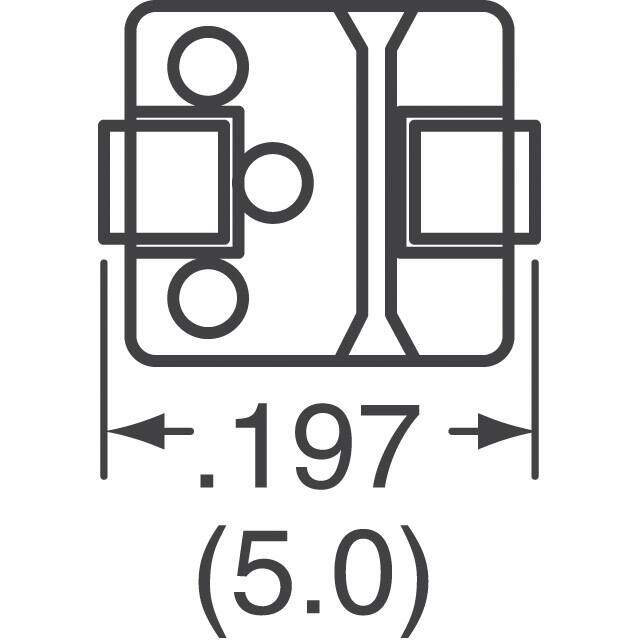

TZB4Z250AA10R01 image
Favorite
TZB4Z250AA10R01 image
Favorite

TZB4Z250AA10R01

Murata Electronics
RoHS
/
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description VARIABLE CAPACITOR TZB4 50V 4pF~25pF 100% 0.177Lx0.157W 4.50mmx4.00mm
PDF
/
Inventory: 6117
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 4mm
Height Seated (Max) 0.126 3.20mm
Height 2.9972mm

Technical

Adjuster Orientation VERTICAL
Capacitance Range 4pF~25pF
Adjustment Type Top
Q @ Freq 300 @ 1MHz
Size Code 2016
Capacitor Type VARIABLE CAPACITOR
Depth 4.5mm
Packing Method TR, 13 INCH
Voltage - Rated DC 50V
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+100
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance 100%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series TZB4
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C

Physical

Material Ceramic
Terminal Shape WRAPAROUND
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status TO BE DISCONTINUED (Last Updated: 3 weeks ago)
