TZB4Z100BA10R00
RoHS
/
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR TZB4 100V 3pF~10pF 50% 300ppm/C
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.893454
≥1 USD $0.893454
≥10 USD $0.842886
≥100 USD $0.79518
≥500 USD $0.750165
≥1000 USD $0.707706
Inventory: 1238
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

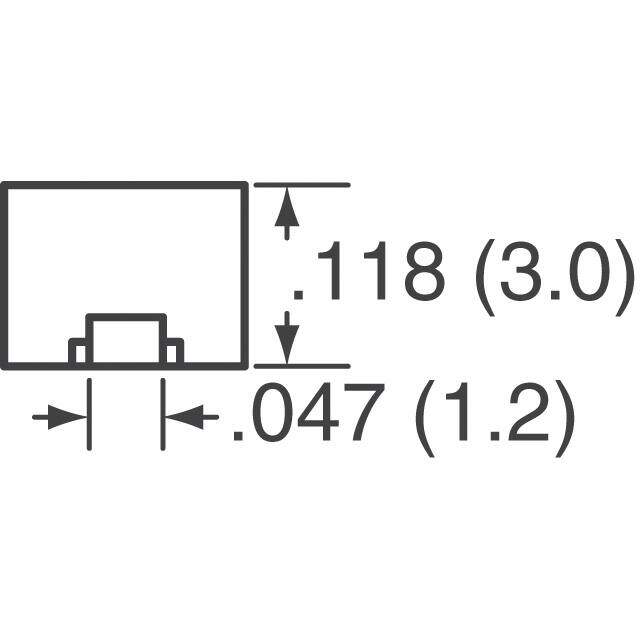

Dimensions
Width 4mm
Length 7mm
Height Seated (Max) 0.126 3.20mm
Height 2.9972mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 3pF~10pF
Adjustment Type Top
Q Factor 500
Q @ Freq 500 @ 1MHz
Test Frequency 1MHz
Size Code 2816
Capacitor Type VARIABLE CAPACITOR
Depth 4.5mm
Packing Method TR, 7 INCH
Voltage - Rated DC 100V
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
Color White
Terminal Finish Tin (Sn)
Temperature Coefficient 300 ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance 50%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series TZB4
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Dielectric Material Ceramic
Terminal Shape GULL WING
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 4 weeks ago)
