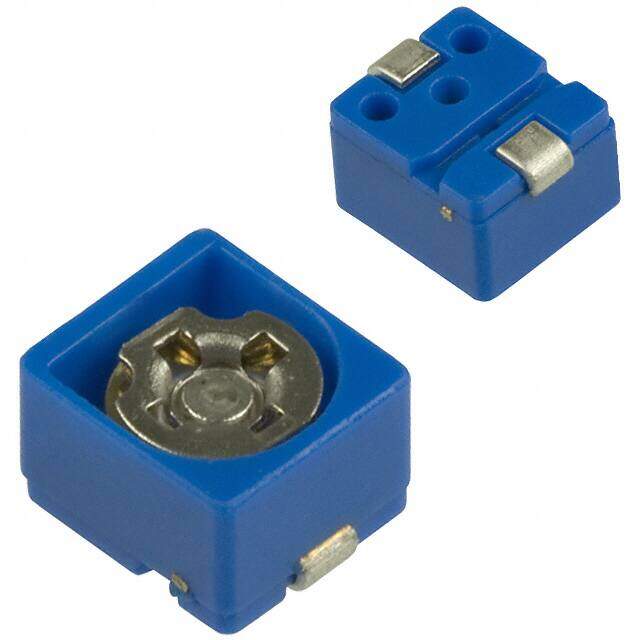

TZB4Z060AA10R00
RoHS
/
Package SMD/SMT
Category Capacitors / Trimmers, Variable Capacitors
Description
SMD/SMT TZB4 100V 2pF~6pF 50% 200ppm/C
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9405
≥1 USD $0.9405
≥10 USD $0.7714
≥100 USD $0.74765
≥500 USD $0.72295
≥1000 USD $0.6992
Inventory: 111409
Minimum: 1
-
+
Technical Details
Technical
Test Frequency 1MHz
Q @ Freq 500 @ 1MHz
Q Factor 500
Adjustment Type Top
Capacitance Range 2pF~6pF
Depth 4.5mm
Voltage - Rated DC 100V
HTS Code 8532.30.00.10
Color Blue
Temperature Coefficient 200 ppm/°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
Tolerance 50%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series TZB4
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Dimensions
Height 2.9972mm
Height Seated (Max) 0.126 3.20mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Dielectric Material Ceramic
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 4 weeks ago)
