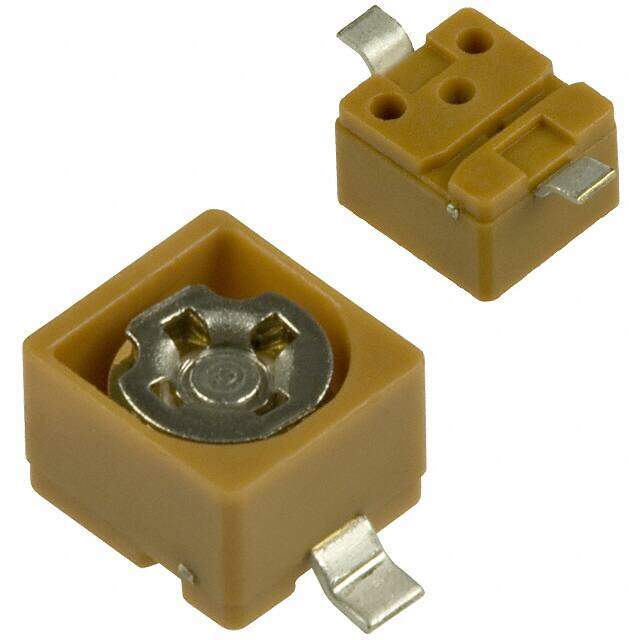

TZB4Z030BA10R00
RoHS
/
Package SMD/SMT
Category Capacitors / Trimmers, Variable Capacitors
Description
SMD/SMT VARIABLE CAPACITOR TZB4 100V 1.4pF~3pF 50% 200ppm/C
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.83265
≥1 USD $4.83265
≥10 USD $3.9653
≥100 USD $3.8418
≥500 USD $3.71735
≥1000 USD $3.59385
Inventory: 1505
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4mm
Length 7mm
Height Seated (Max) 0.126 3.20mm
Height 2.9972mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 1.4pF~3pF
Adjustment Type Top
Q @ Freq 300 @ 1MHz
Size Code 2816
Capacitor Type VARIABLE CAPACITOR
Depth 4.5mm
Packing Method TR, 7 INCH
Voltage - Rated DC 100V
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
Color Brown
Terminal Finish Tin (Sn)
Temperature Coefficient 200 ppm/°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance 50%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series TZB4
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Dielectric Material Ceramic
Terminal Shape GULL WING
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 4 weeks ago)
