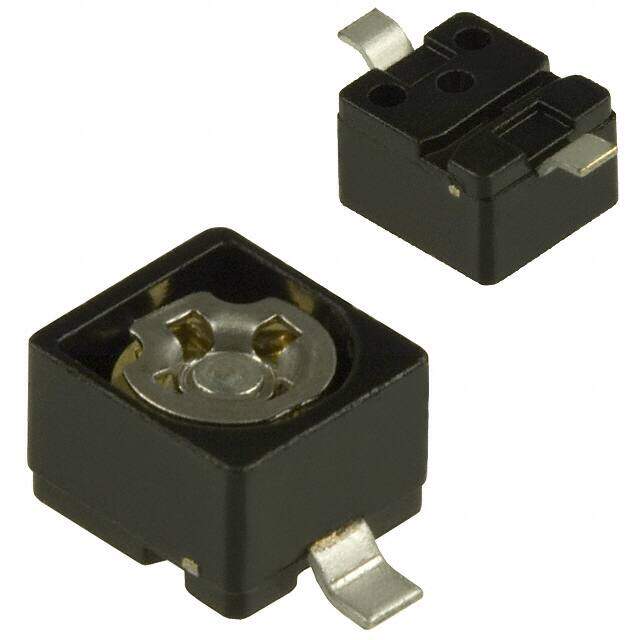

TZB4R500EA10R01

Murata Electronics
RoHS
RoHS RoHS compliant
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description VARIABLE CAPACITOR TZB4 50V 7pF~50pF 0.177Lx0.157W 4.50mmx4.00mm
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.742218
≥1 USD $1.742218
≥200 USD $0.695837
≥500 USD $0.672205
≥1000 USD $0.660389
Inventory: 2882
Minimum: 1
-
+

Technical Details

Physical

Mounting Type Surface Mount
Surface Mount YES
Terminal Shape GULL WING
Dielectric Material Ceramic

Technical

Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Series TZB4
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn)
Voltage - Rated 50V
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+100
HTS Code 8532.30.00.10
Packing Method TR, 13 INCH
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 50V
Size Code 2816
Positive Tolerance 100%
Q @ Freq 300 @ 1MHz
Adjustment Type Bottom Adjustment
Capacitance Range 7pF~50pF
Adjuster Orientation VERTICAL

Dimensions

Height Seated (Max) 0.126 3.20mm
Length 7mm
Width 4mm

Compliance

RoHS Status ROHS3 Compliant
