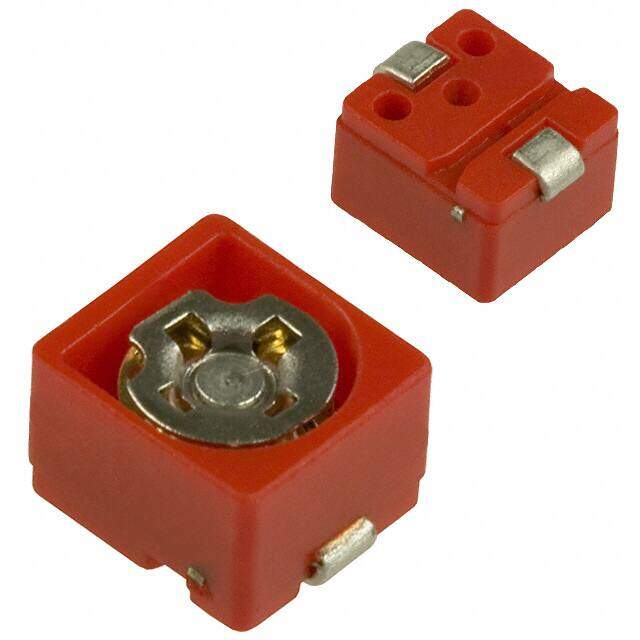

TZB4R200AB10R01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR TZB4 100V 4.5pF~20pF 0.177Lx0.157W 4.50mmx4.00mm
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.947914
≥1 USD $0.947914
≥200 USD $0.378115
≥500 USD $0.366299
≥1000 USD $0.359735
Inventory: 7806
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Surface Mount YES
Terminal Shape GULL WING
Dielectric Material Ceramic
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Series TZB4
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn)
Voltage - Rated 100V
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
HTS Code 8532.30.00.10
Packing Method TR, 13 INCH
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 100V
Size Code 2016
Positive Tolerance 50%
Q @ Freq 500 @ 1MHz
Adjustment Type Top
Capacitance Range 4.5pF~20pF
Adjuster Orientation VERTICAL
Dimensions
Height Seated (Max) 0.126 3.20mm
Length 5mm
Width 4mm
Compliance
RoHS Status ROHS3 Compliant
