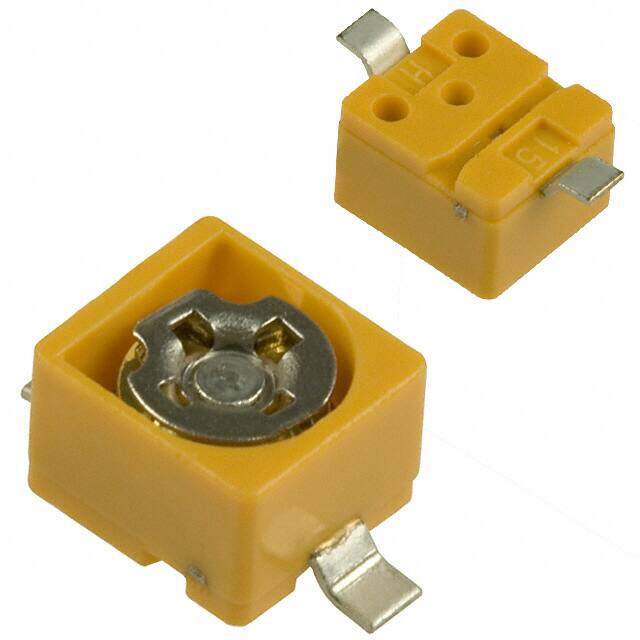

TZB4P400BB10R00 image
Favorite
TZB4P400BB10R00 image
Favorite

TZB4P400BB10R00

Murata Electronics
RoHS
/
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description VARIABLE CAPACITOR TZB4 100V 8.5pF~40pF 50% 500ppm/C
PDF
/
Inventory: 6018
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 4mm
Length 7mm
Height Seated (Max) 0.126 3.20mm
Height 3mm

Technical

Adjuster Orientation VERTICAL
Capacitance Range 8.5pF~40pF
Adjustment Type Top
Q @ Freq 300 @ 1MHz
Size Code 2816
Capacitor Type VARIABLE CAPACITOR
Depth 4.5mm
Packing Method TR, 7 INCH
Voltage - Rated DC 100V
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
Color Yellow
Terminal Finish Tin (Sn)
Temperature Coefficient 500 ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance 50%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series TZB4
Packaging Cut Tape (CT)
Operating Temperature -25°C~85°C

Physical

Dielectric Material Ceramic
Terminal Shape GULL WING
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status TO BE DISCONTINUED (Last Updated: 2 weeks ago)
