TZB4P300BB10B00
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Capacitors / Trimmers, Variable Capacitors
Description
SMD/SMT VARIABLE CAPACITOR TZB4 100V 6.5pF~30pF 50% 0.177Lx0.157W 4.50mmx4.00mm
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.180297
≥1 USD $1.180297
≥200 USD $0.471331
≥500 USD $0.455576
≥1000 USD $0.447699
Inventory: 6008
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 1 month ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Terminal Shape GULL WING
Dielectric Material Ceramic
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series TZB4
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance 50%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
HTS Code 8532.30.00.10
Voltage - Rated DC 100V
Depth 4.5mm
Capacitor Type VARIABLE CAPACITOR
Size Code 2816
Q @ Freq 300 @ 1MHz
Adjustment Type Top
Capacitance Range 6.5pF~30pF
Adjuster Orientation VERTICAL
Dimensions
Height 2.9972mm
Height Seated (Max) 0.126 3.20mm

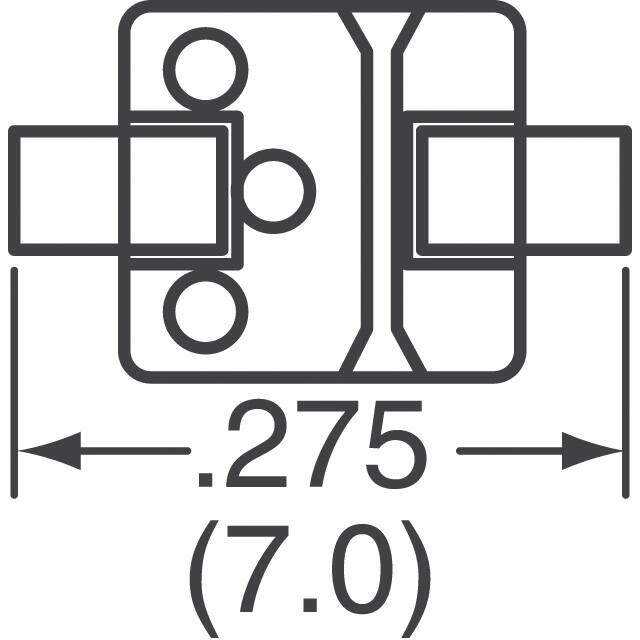

Length 7mm
Width 4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
