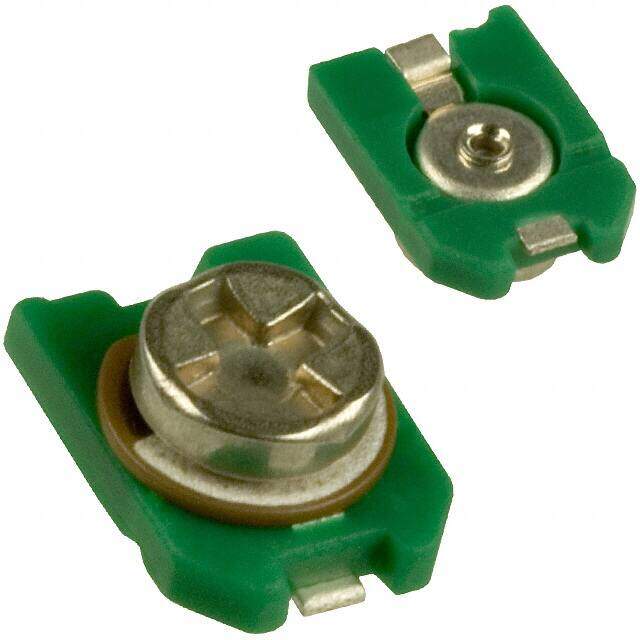

TZB4P300BA10B00
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Capacitors / Trimmers, Variable Capacitors
Description
100 VARIABLE CAPACITOR TZB4 100V 6.5pF~30pF 50% 0.177Lx0.157W 4.50mmx4.00mm
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.085768
≥1 USD $1.085768
≥200 USD $0.433257
≥500 USD $0.418815
≥1000 USD $0.412251
Inventory: 3403
Minimum: 1
-
+
Technical Details
Dimensions
Length 7mm
Width 4mm
Height Seated (Max) 0.126 3.20mm
Height 2.9972mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Technical
Adjuster Orientation VERTICAL
Capacitance Range 6.5pF~30pF
Adjustment Type Top
Q @ Freq 300 @ 1MHz
Size Code 2816
Capacitor Type VARIABLE CAPACITOR
Depth 4.5mm
Voltage - Rated DC 100V
HTS Code 8532.30.00.10
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+50
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance 50%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series TZB4
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Dielectric Material Ceramic
Terminal Shape GULL WING
Package / Case 100
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status TO BE DISCONTINUED (Last Updated: 3 weeks ago)
