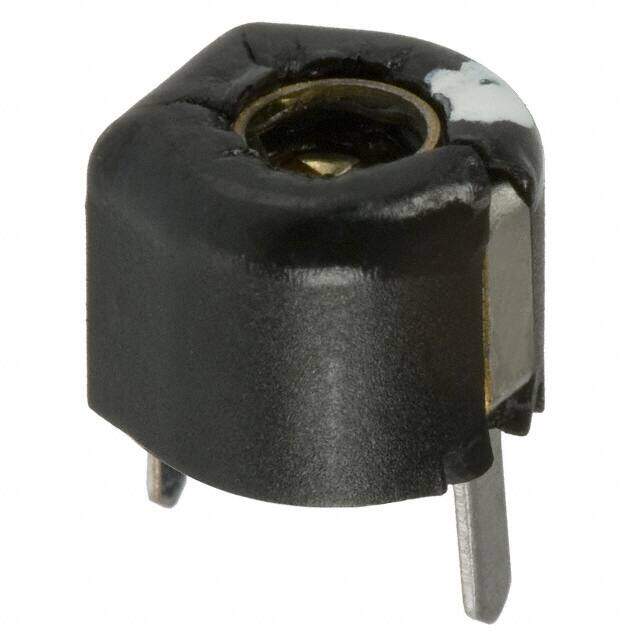

TZ03R900E169B00
RoHS
/
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR TZ03 50V 9pF~90pF 0.5% 300ppm/C
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.008307
≥1 USD $1.008307
≥200 USD $0.40306
≥500 USD $0.388618
≥1000 USD $0.382054
Inventory: 983
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Ceramic
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series TZ03
Size / Dimension 0.236Dia 6.00mm
Tolerance 0.5%
JESD-609 Code e1
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
Temperature Coefficient 300 ppm/°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature PERCENTAGE TOLERANCE ON C_MAX IS 0/+100
HTS Code 8532.30.00.10
Voltage - Rated DC 50V
Depth 6mm
Lead Pitch 6.096mm
Capacitor Type VARIABLE CAPACITOR
Q @ Freq 300 @ 1MHz
Adjustment Type Bottom
Capacitance Range 9pF~90pF
Adjuster Orientation VERTICAL
Dimensions
Height 4.826mm
Height Seated (Max) 0.209 5.30mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
