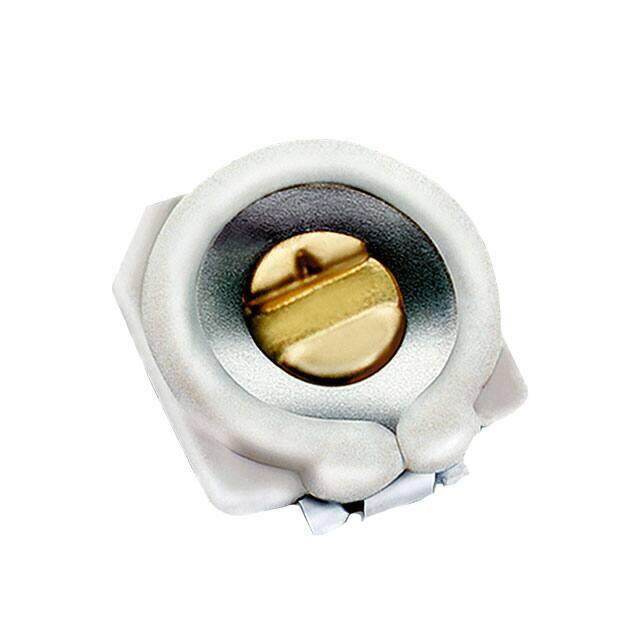

JZ060 image
Favorite
JZ060 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description JZ 125V -6pF 100% 0.177Lx0.126W 4.50mmx3.20mm
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.816
≥1 USD $2.816
≥10 USD $2.16656
≥100 USD $1.990208
≥500 USD $1.650176
≥1000 USD $1.326794
Inventory: 219281
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mounting Type Surface Mount
Dielectric Material Ceramic

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2014
Series JZ
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance 100%
Feature General Purpose
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Ceramic
Voltage - Rated 125V
Capacitance -6pF
Voltage - Rated DC 350V
Test Frequency 1MHz
Q @ Freq 1000 @ 1MHz
Q Factor 1000
Adjustment Type Top
Capacitance Range 2pF~6pF

Dimensions

Height 1.4986mm
Height Seated (Max) 0.057 1.45mm
Length 4.4958mm
Width 3.2004mm

Compliance

RoHS Status RoHS Compliant

Alternative Model
