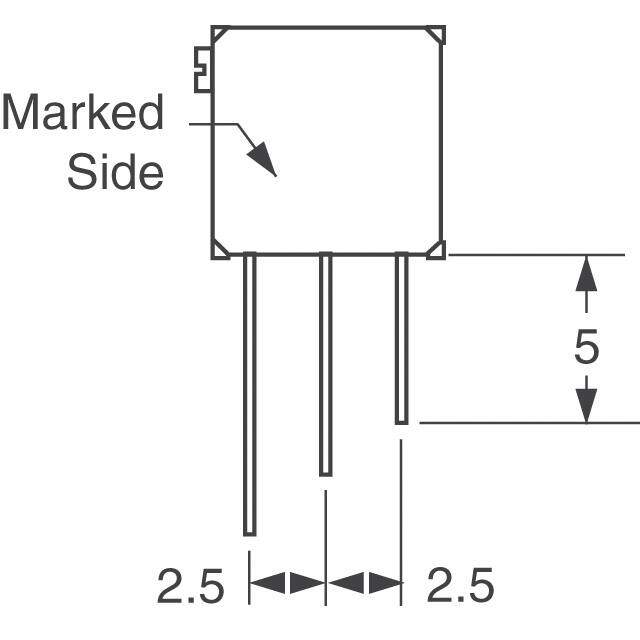

CT-94X-500
RoHS
/
Package /
Category Potentiometers, Variable Resistors / Trimmer Potentiometers
Description
TRIMMER 50 OHM 0.5W PC PIN SIDE
PDF
/
Inventory: 5060
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape WIRE
Resistive Material Cermet
Technical
Packaging Bulk
Published 2004
Series CT94
Size / Dimension Rectangular - 0.378 x 0.189 Face x 0.378 H 9.60mmx4.80mmx9.60mm
Tolerance ±10%
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination PC Pin
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 50Ohm
Terminal Finish TIN LEAD
Power (Watts) 0.5W 1/2W
HTS Code 8533.40.80.50
Max Power Dissipation 500mW
Resistor Type TRIMMER
Termination Style PC Pins
Rated Power Dissipation (P) 0.5W
Actuator Type SCREW
Operating Temperature (Min) -55°C
Rated Temperature 70°C
Adjustment Type Side Adjustment
Number of Turns 18
Actuator Orientation HORIZONTAL
Dimensions
Height 9.6012mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
