Package /
Category Potentiometers, Variable Resistors / Trimmer Potentiometers

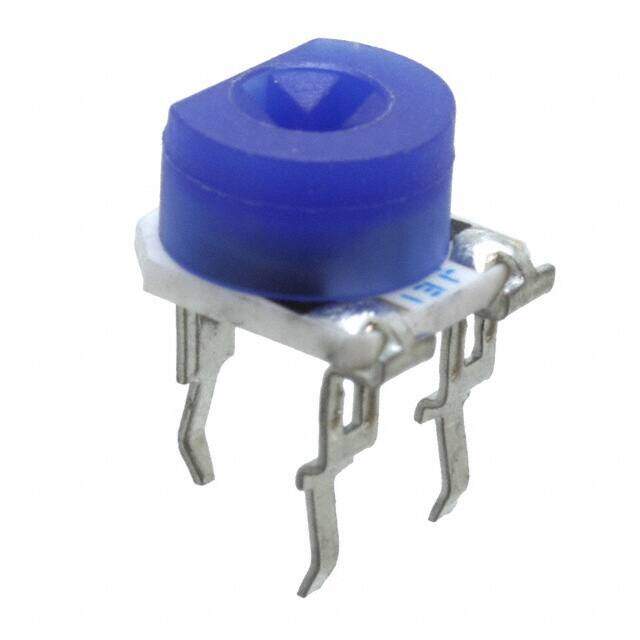

Description Cermet Active Blue ROHS3Compliant Trimmer Potentiometer ±10% 500mW 120C 10kOhms
PDF
/
Buying Options
Total Price: USD $4.18
Unit Price: USD $4.184163
≥1 USD $4.184163
≥10 USD $3.947325
≥100 USD $3.723883
≥500 USD $3.513097
≥1000 USD $3.314251
Inventory: 1196
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 7.1882mm
Length 8.2042mm
Height 8.4074mm
Diameter 7.2mm

Technical

Number of Turns 3
Adjustment Type Side Adjustment
Termination Style PC Pins
Max Power Dissipation 500mW
Power (Watts) 0.5W 1/2W
Color Blue
Composition Cermet
Min Operating Temperature -55°C
Max Operating Temperature 120°C
Resistance 10kOhms
Temperature Coefficient ±100ppm/°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension Square - 0.323Lx0.283W x 0.331 H 8.20mmx7.20mmx8.40mm
Series TM-7
Published 2016
Packaging Bulk

Physical

Resistive Material Cermet
Weight 690mg
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 9 Weeks
