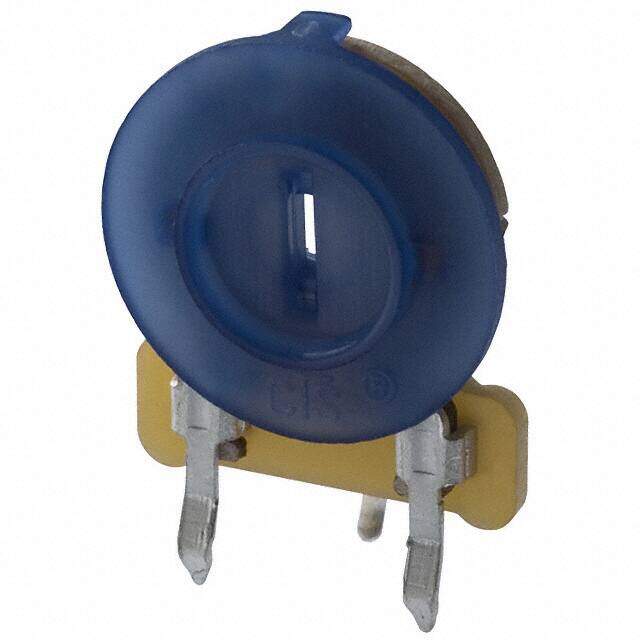

201XR504B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Potentiometers, Variable Resistors / Trimmer Potentiometers
Description
TRIMMER 500KOHM 0.2W PC PIN SIDE
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.669579
≥1 USD $0.669579
≥200 USD $0.267832
≥600 USD $0.258641
≥1200 USD $0.254703
Inventory: 2887
Minimum: 1
-
+
Technical Details
Technical
ECCN Code EAR99
Resistance 500kOhm
Power (Watts) 0.2W 1/5W
HTS Code 8533.40.80.70
Subcategory Variable Resistors
Construction Miniature Size
Resistor Type TRIMMER
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Tolerance ±20%
Size / Dimension Rectangular - 0.594 x 0.734 Face x 0.734 H 15.10mmx18.64mmx18.64mm
Series 201
Published 1999
Packaging Bulk
Rotation Angle 260 deg
Actuator Orientation HORIZONTAL
Number of Turns 1
Adjustment Type Side Adjustment
Rated Temperature 55°C
Working Voltage 350V
Operating Temperature (Min) 55°C
Actuator Type SCREW
Rated Power Dissipation (P) 0.25W
Termination Style PC Pins
Reach Compliance Code compliant
Physical
Resistive Material Carbon
Terminal Shape SNAP-IN
Surface Mount NO
Mounting Type Through Hole
Supply Chain
Factory Lead Time 5 Weeks
Compliance
RoHS Status RoHS Compliant
