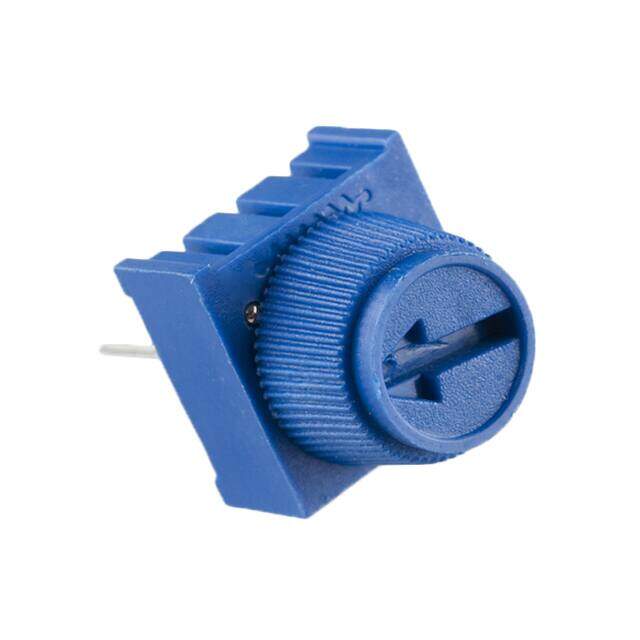

3362U-1-502LF

Bourns Inc.
RoHS
RoHS RoHS compliant
Package /
Category Potentiometers, Variable Resistors / Trimmer Potentiometers
Description Cermet Not Linear TRIMMER Trimmer Potentiometer ±10% 240deg 500mW 70C
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.364
≥1 USD $1.364
≥10 USD $1.20032
≥100 USD $1.079936
≥500 USD $1.039808
≥1000 USD $0.999856
≥3000 USD $0.93991
Inventory: 263
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height 4.699mm

Technical

Rotation Angle 240 deg
Actuator Orientation VERTICAL
Taper Linear
Number of Turns 1
Adjustment Type Top Adjustment
Rated Temperature 70°C
Size Code 2628
Lead Diameter 0.46 mm
Lead Length 5.46mm
Actuator Type SCREW
Rated Power Dissipation (P) 0.5W
Termination Style PC Pins
Military Standard Not
Base Part Number 3362U
Resistor Type TRIMMER
Construction Trimmer Pot
Depth 6.99mm
Max Power Dissipation 500mW
Power Rating 500mW
Subcategory Variable Resistors
HTS Code 8533.40.80.50
Voltage - Rated 300V
Power (Watts) 0.5W 1/2W
Color Blue
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
Resistance 5kOhm
Temperature Coefficient ±100ppm/°C
ECCN Code EAR99
Termination Pin
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension Rectangular - 0.275 x 0.260 Face x 0.185 H 6.99mmx6.60mmx4.70mm
Series Trimpot? 3362 - Sealed
Published 2007
Packaging Tube

Physical

Resistive Material Cermet
Weight 566.990462mg
Terminal Shape WIRE
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 6 Weeks
