3314S-3-202E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Potentiometers, Variable Resistors / Trimmer Potentiometers
Description
TRIMMER 2K OHM 0.25W J LEAD SIDE
PDF
/
Inventory: 5664
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Terminal Shape J BEND
Weight 285mg
Resistive Material Cermet
Technical
Packaging Tape & Reel (TR)
Published 2012
Series Trimpot? 3314 - Sealed
Size / Dimension Rectangular - 0.197 x 0.177 Face x 0.221 H 5.01mmx4.50mmx5.61mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination SMD/SMT
Temperature Coefficient ±100ppm/°C
Resistance 2kOhm
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Cermet, Potentiometer
Color Natural
Power (Watts) 0.25W 1/4W
Power Rating 250mW
Packing Method TR, EMBOSSED, 7 INCH
Max Power Dissipation 250mW
Depth 4.95mm
Resistor Type TRIMMER
Base Part Number 3314S
Military Standard Not
Termination Style J Lead
Rated Power Dissipation (P) 0.25W
Actuator Type SCREW
Size Code 2022
Rated Temperature 70°C
Adjustment Type Side Adjustment
Number of Turns 1
Actuator Orientation VERTICAL
Rotation Angle 240 deg
Dimensions
Height 5.6134mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free

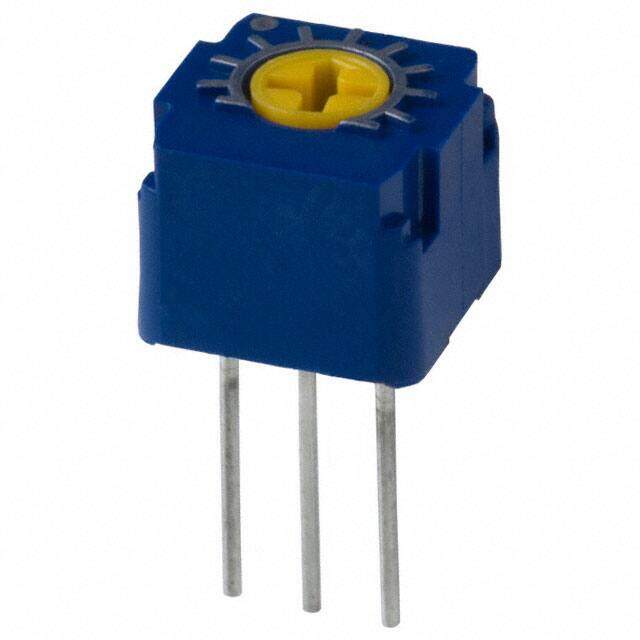

Alternative Model
