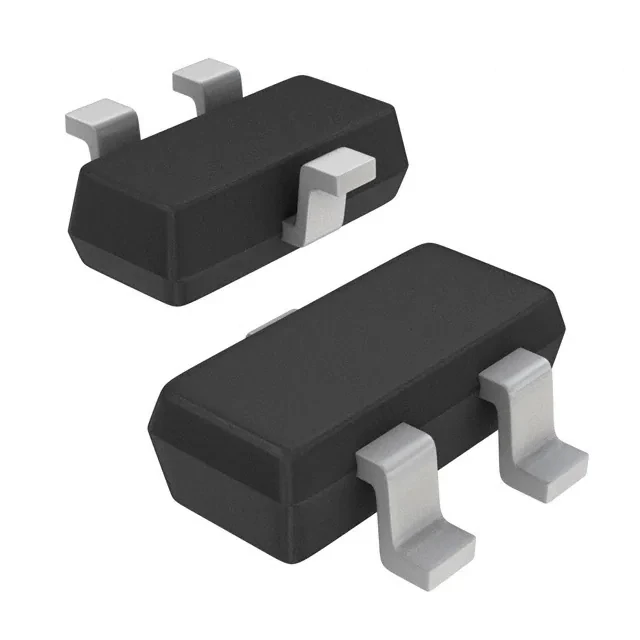

2SK3796-4-TL-E image
Favorite
2SK3796-4-TL-E image
Favorite

2SK3796-4-TL-E

ON Semiconductor
RoHS
/
Package SC-75, SOT-416
Category Discrete Semiconductor Products / Transistors - JFETs
Description JFET N-CH 10MA 100MW SMCP
PDF
/
Inventory: 4273
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-75, SOT-416

Technical

Operating Temperature 150°C TJ
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e6
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Max Power Dissipation 100mW
Element Configuration Single
FET Type N-Channel
Input Capacitance (Ciss) (Max) @ Vds 4pF @ 10V
Drain to Source Voltage (Vdss) 30V
Continuous Drain Current (ID) 10mA
Drain to Source Breakdown Voltage 30V
Current - Drain (Idss) @ Vds (Vgs=0) 2.5mA @ 10V
Voltage - Cutoff (VGS off) @ Id 180mV @ 1μA
Resistance - RDS(On) 200Ohm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
