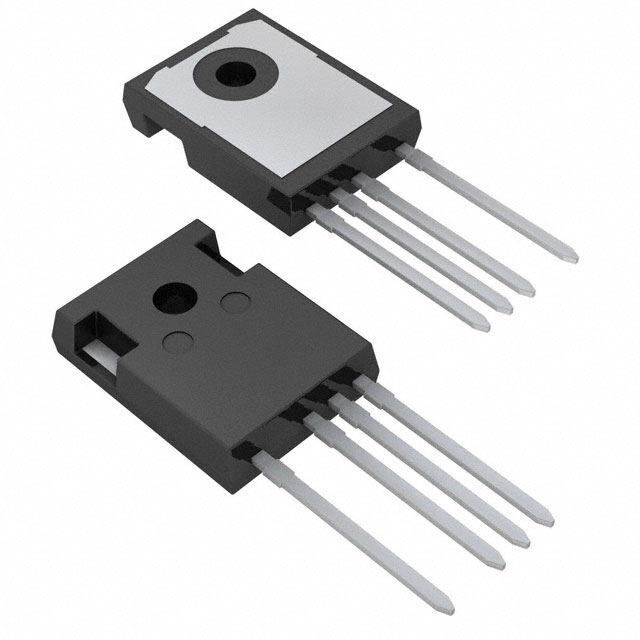

STGW60H65DFB-4
RoHS
/
Package TO-247-4
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
IGBT
PDF
/
Buying Options
Total Price: USD $5.29
Unit Price: USD $5.2888
≥1 USD $5.2888
≥10 USD $4.53288
≥100 USD $3.7774
≥500 USD $3.333
≥1000 USD $2.9997
≥3000 USD $2.810834
Inventory: 655
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Switching Energy 346μJ (on), 1.161mJ (off)
Td (on/off) @ 25°C 65ns/261ns
Current - Collector Pulsed (Icm) 240A
Gate Charge 306nC
IGBT Type Trench Field Stop
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 60A
Test Condition 400V, 60A, 10 Ω, 15V
Current - Collector (Ic) (Max) 80A
Voltage - Collector Emitter Breakdown (Max) 650V
Reverse Recovery Time 60ns
Power - Max 375W
Input Type Standard
Base Part Number STGW60
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HB
Operating Temperature -55°C~175°C TJ
Physical
Package / Case TO-247-4
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 20 Weeks
