SGR6N60UFTM
RoHS
/

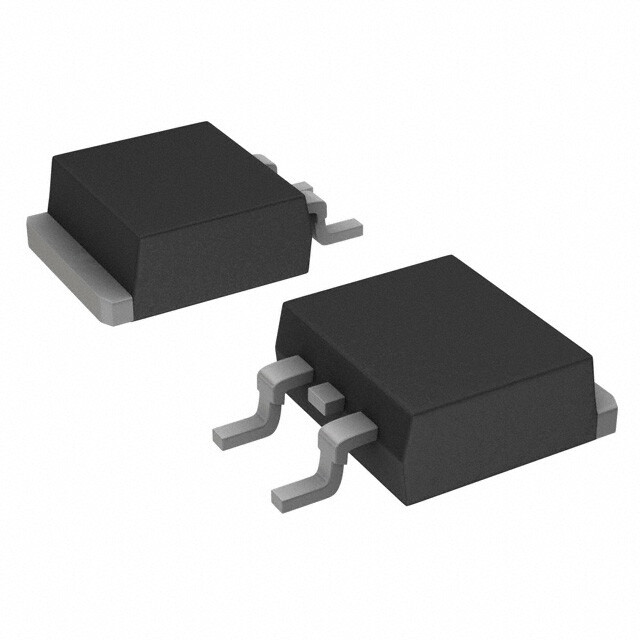

Package TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
IGBT 600V 6A 30W DPAK
PDF
/
Buying Options
Total Price: USD $3.53
Unit Price: USD $3.53305
≥1 USD $3.53305
≥10 USD $2.89845
≥100 USD $2.8082
≥500 USD $2.71795
≥1000 USD $2.62675
Inventory: 2450
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Switching Energy 57μJ (on), 25μJ (off)
Td (on/off) @ 25°C 15ns/60ns
Current - Collector Pulsed (Icm) 25A
Gate Charge 15nC
Vce(on) (Max) @ Vge, Ic 2.6V @ 15V, 3A
Test Condition 300V, 3A, 80 Ω, 15V
Collector Emitter Saturation Voltage 2.1V
Collector Emitter Breakdown Voltage 600V
Max Collector Current 6A
Collector Emitter Voltage (VCEO) 600V
Input Type Standard
Power Dissipation 30W
Element Configuration Single
Base Part Number SG*6N60
Current Rating 3A
Max Power Dissipation 30W
Voltage - Rated DC 600V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Weight 260.37mg
Number of Pins 3
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
