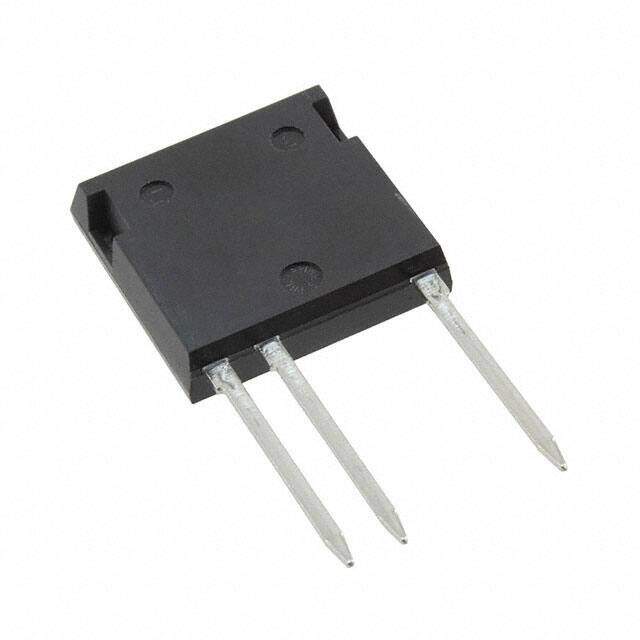

IXBF50N360
RoHS
RoHS compliant
RoHS compliantPackage i4-Pac?-5 (3 Leads)
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
IGBT 3600V 70A 290W I4-PAK
PDF
/
Buying Options
Total Price: USD $227.75
Unit Price: USD $227.750076
≥1 USD $227.750076
≥200 USD $90.873686
≥500 USD $87.836949
≥1000 USD $86.336304
Inventory: 3059
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Td (on/off) @ 25°C 46ns/205ns
Current - Collector Pulsed (Icm) 420A
Gate Charge 210nC
Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 50A
Test Condition 960V, 50A, 5 Ω, 15V
Voltage - Collector Emitter Breakdown (Max) 3600V
Collector Emitter Breakdown Voltage 3.6kV
Reverse Recovery Time 1.7 μs
Max Collector Current 70A
Collector Emitter Voltage (VCEO) 2.9V
Power - Max 290W
Input Type Standard
Reach Compliance Code unknown
Max Power Dissipation 290W
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Series BIMOSFET?
Published 2014
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Package / Case i4-Pac?-5 (3 Leads)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
