IXA4IF1200TC
RoHS
/
Package TO-268-3
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
PDF
/
Inventory: 5569
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 14mm
Length 16.05mm
Height 5.1mm
Technical
Turn Off Time-Nom (toff) 350 ns
Turn On Time 110 ns
Collector Emitter Saturation Voltage 1.8V
Collector Emitter Breakdown Voltage 1.2kV
JEDEC-95 Code TO-268AA
Reverse Recovery Time 350 ns
Max Collector Current 9A
Collector Emitter Voltage (VCEO) 1.2kV
Polarity/Channel Type N-CHANNEL
Transistor Application POWER CONTROL
Case Connection COLLECTOR
Power Dissipation 45W
Element Configuration Single
Power Dissipation-Max 45W
Number of Elements 1
JESD-30 Code R-PSSO-G2
Reference Standard IEC-60747
Terminal Form GULL WING
Min Operating Temperature -55°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 2
Physical
Number of Pins 3
Package / Case TO-268-3
Mount Surface Mount

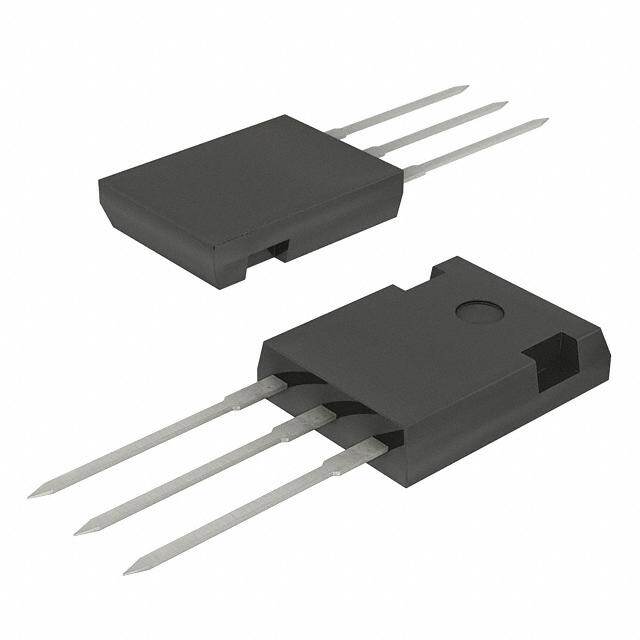

Alternative Model
