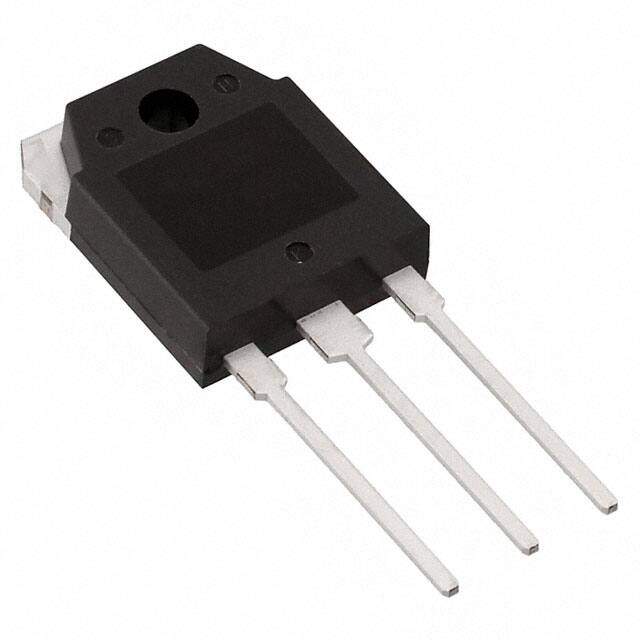

IRG4PC20U image
Favorite
IRG4PC20U image
Favorite
RoHS
/
Package TO-247-3
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description IGBT 600V 13A 60W TO247AC
PDF
/
Buying Options
Total Price: USD $9.06
Unit Price: USD $9.0573
≥1 USD $9.0573
≥10 USD $7.43185
≥100 USD $7.20005
≥500 USD $6.9673
≥1000 USD $6.7355
Inventory: 3008
Minimum: 1
-
+

Technical Details

Physical

Mounting Type Through Hole
Package / Case TO-247-3

Technical

Packaging Bulk
Published 2007
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Input Type Standard
Power - Max 60W
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 13A
Test Condition 480V, 6.5A, 50 Ω, 15V
Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 6.5A
Gate Charge 27nC
Current - Collector Pulsed (Icm) 52A
Td (on/off) @ 25°C 21ns/86ns
Switching Energy 100μJ (on), 120μJ (off)

Compliance

RoHS Status Non-RoHS Compliant
