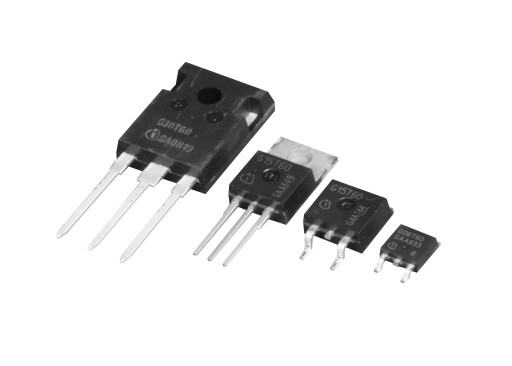

IGW60T120
RoHS
/
Package TO-247
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
IGBT 1200V 100A 375W TO247-3
PDF
/
Buying Options
Total Price: USD $10.84
Unit Price: USD $10.8357
≥1 USD $10.8357
≥10 USD $8.89105
≥100 USD $8.6127
≥500 USD $8.3353
≥1000 USD $8.05695
Inventory: 8806
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Package / Case TO-247
Number of Pins 3
Technical
Published 2006
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Subcategory Insulated Gate BIP Transistors
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Case Connection COLLECTOR
Transistor Application POWER CONTROL
Polarity/Channel Type N-CHANNEL
Collector Emitter Voltage (VCEO) 1.2kV
Max Collector Current 100A
Turn On Time 95 ns
Turn Off Time-Nom (toff) 730 ns
Gate-Emitter Voltage-Max 20V
Gate-Emitter Thr Voltage-Max 6.5V
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
