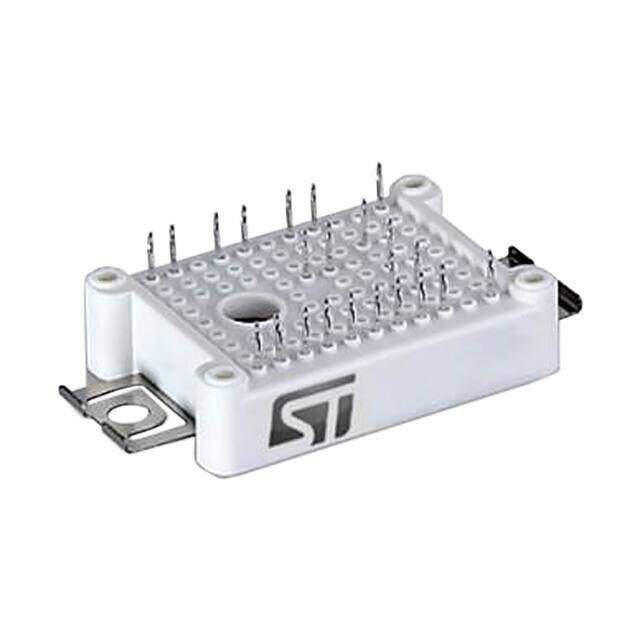

A1C15S12M3-F
RoHS
/
Package Module
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
IGBT TRENCH 1200V 15A ACEPACK1
PDF
/
Inventory: 2059
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Input Capacitance (Cies) @ Vce 985pF @ 25V
NTC Thermistor Yes
IGBT Type Trench Field Stop
Vce(on) (Max) @ Vge, Ic 2.45V @ 15V, 15A
Current - Collector (Ic) (Max) 15A
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector Cutoff (Max) 100μA
Input Three Phase Bridge Rectifier
Power - Max 142.8W
Configuration Three Phase Inverter with Brake
Base Part Number A1C15S12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -40°C~150°C TJ
Physical
Package / Case Module
Mounting Type Chassis Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
