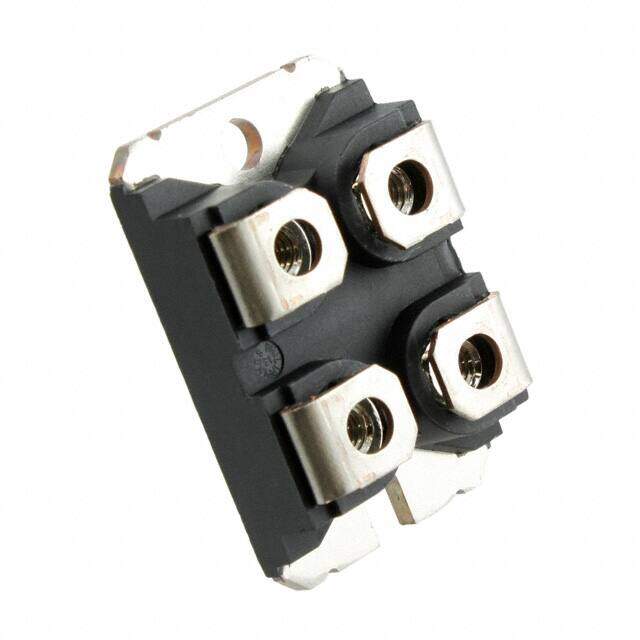

IXGN60N60
RoHS
/
Package SOT-227-4, miniBLOC
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
IGBT MOD 600V 100A 250W SOT227B
PDF
/
Buying Options
Total Price: USD $19.73
Unit Price: USD $19.73042
≥1 USD $19.73042
≥10 USD $18.6136
≥100 USD $17.56
Inventory: 613
Minimum: 1
-
+
Technical Details
Physical
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Number of Pins 4
Weight 38.000013g
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Bulk
Published 2000
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Nickel (Ni)
Additional Feature FAST
Subcategory Insulated Gate BIP Transistors
Voltage - Rated DC 600V
Max Power Dissipation 250W
Terminal Position UPPER
Terminal Form UNSPECIFIED
Current Rating 100A
Base Part Number IXG*60N60
Pin Count 4
Number of Elements 1
Configuration Single
Power Dissipation 250W
Case Connection ISOLATED
Transistor Application POWER CONTROL
Rise Time 30ns
Polarity/Channel Type N-CHANNEL
Input Standard
Collector Emitter Voltage (VCEO) 600V
Max Collector Current 100A
Current - Collector Cutoff (Max) 200μA
Collector Emitter Breakdown Voltage 600V
Collector Emitter Saturation Voltage 1.7V
Input Capacitance 4nF
Turn On Time 50 ns
Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 60A
Turn Off Time-Nom (toff) 650 ns
IGBT Type PT
NTC Thermistor No
Gate-Emitter Voltage-Max 20V
Input Capacitance (Cies) @ Vce 4nF @ 25V
Gate-Emitter Thr Voltage-Max 5V
Fall Time-Max (tf) 700ns
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
