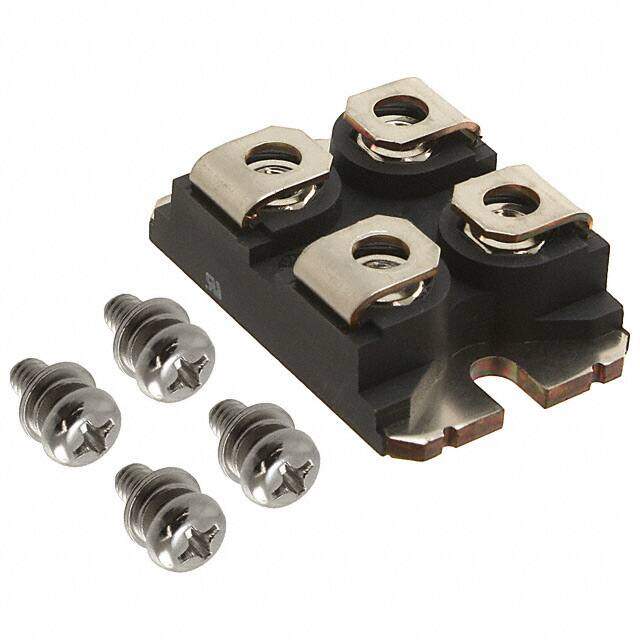

IXGN120N60A3D1
RoHS
RoHS compliant
RoHS compliantPackage SOT-227-4, miniBLOC
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
IGBT MOD 600V 200A 595W SOT227B
PDF
/
Buying Options
Total Price: USD $79.22
Unit Price: USD $79.2224
≥1 USD $79.2224
≥10 USD $76.7467
≥100 USD $74.271
≥500 USD $71.7953
≥1000 USD $64.3682
Inventory: 1184
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Input Capacitance (Cies) @ Vce 14.8nF @ 25V
Gate-Emitter Voltage-Max 20V
NTC Thermistor No
IGBT Type PT
Turn Off Time-Nom (toff) 830 ns
Vce(on) (Max) @ Vge, Ic 1.35V @ 15V, 100A
Turn On Time 123 ns
Input Capacitance 14.8nF
Collector Emitter Breakdown Voltage 600V
Current - Collector Cutoff (Max) 650μA
Max Collector Current 200A
Collector Emitter Voltage (VCEO) 1.35V
Turn-Off Delay Time 410 ns
Input Standard
Polarity/Channel Type N-CHANNEL
Transistor Application POWER CONTROL
Power - Max 595W
Turn On Delay Time 39 ns
Case Connection ISOLATED
Configuration Single
Number of Elements 1
JESD-30 Code R-PUFM-X4
Pin Count 4
Base Part Number IXG*120N60
Terminal Form UNSPECIFIED
Terminal Position UPPER
Max Power Dissipation 595W
Subcategory Insulated Gate BIP Transistors
Additional Feature LOW CONDUCTION LOSS, UL RECOGNIZED
Terminal Finish Nickel (Ni)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series GenX3?
Published 2009
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Weight 38.000013g
Package / Case SOT-227-4, miniBLOC
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 26 Weeks
Alternative Model
