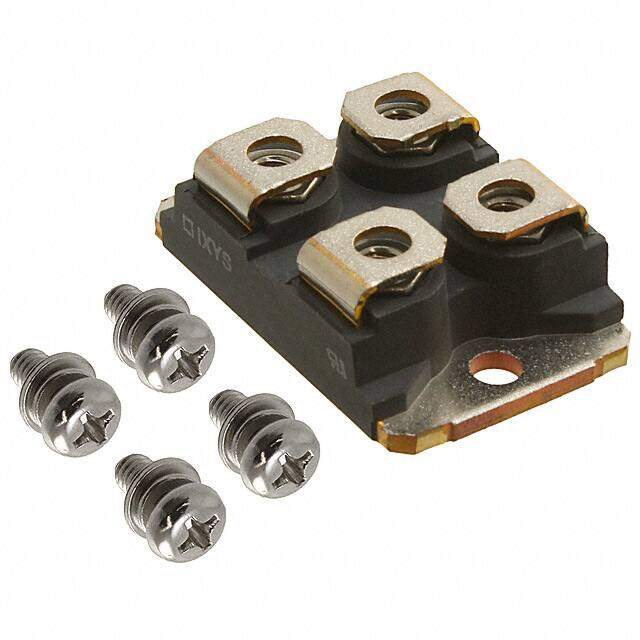

IXDN75N120
RoHS
RoHS compliant
RoHS compliantPackage SOT-227-4, miniBLOC
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
IGBT MOD 1200V 150A 660W SOT227B
PDF
/
Buying Options
Total Price: USD $20.74
Unit Price: USD $20.73755
≥1 USD $20.73755
≥10 USD $17.01545
≥100 USD $16.48345
≥500 USD $15.95145
≥1000 USD $15.4204
≥3000 USD $13.82535
Inventory: 3007
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
VCEsat-Max 2.7 V
Input Capacitance (Cies) @ Vce 5.5nF @ 25V
Gate-Emitter Voltage-Max 20V
NTC Thermistor No
IGBT Type NPT
Turn Off Time-Nom (toff) 700 ns
Vce(on) (Max) @ Vge, Ic 2.7V @ 15V, 75A
Turn On Time 150 ns
Input Capacitance 5.5nF
Collector Emitter Saturation Voltage 2.2V
Voltage - Collector Emitter Breakdown (Max) 1200V
Collector Emitter Breakdown Voltage 1.2kV
Current - Collector Cutoff (Max) 4mA
Max Collector Current 150A
Collector Emitter Voltage (VCEO) 1.2kV
Input Standard
Polarity/Channel Type N-CHANNEL
Transistor Application MOTOR CONTROL
Power - Max 660W
Case Connection ISOLATED
Configuration Single
Number of Elements 1
Pin Count 4
Terminal Form UNSPECIFIED
Terminal Position UPPER
Max Power Dissipation 660W
Subcategory Insulated Gate BIP Transistors
Additional Feature UL RECOGNIZED
Terminal Finish Nickel (Ni)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2000
Operating Temperature -40°C~150°C TJ
Physical
Transistor Element Material SILICON
Weight 38.000013g
Number of Pins 4
Package / Case SOT-227-4, miniBLOC
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 28 Weeks
