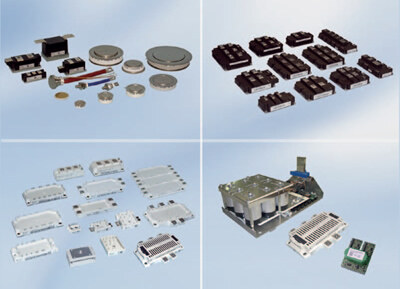

FS450R12KE3
RoHS
/
Package /
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
Infineon FS450R12KE3, EconoPACK+ Isolated IGBT Module, 600 A max, 1200 V, Screw Mount
PDF
/
Buying Options
Total Price: USD $438.52
Unit Price: USD $438.51525
≥1 USD $438.51525
Inventory: 25
Minimum: 1
-
+
Technical Details
Physical
Surface Mount NO
Number of Terminals 29
Transistor Element Material SILICON
Technical
Pbfree Code icon-pbfree no
Moisture Sensitivity Level (MSL) 1
ECCN Code EAR99
Subcategory Insulated Gate BIP Transistors
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 29
JESD-30 Code R-XUFM-X29
Qualification Status Not Qualified
Operating Temperature (Max) 150°C
Number of Elements 6
Configuration 3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR
Case Connection ISOLATED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 2000W
Turn On Time 400 ns
Collector Current-Max (IC) 600A
Turn Off Time-Nom (toff) 810 ns
Collector-Emitter Voltage-Max 1200V
Gate-Emitter Voltage-Max 20V
VCEsat-Max 2.1 V
Compliance
RoHS Status RoHS Compliant
