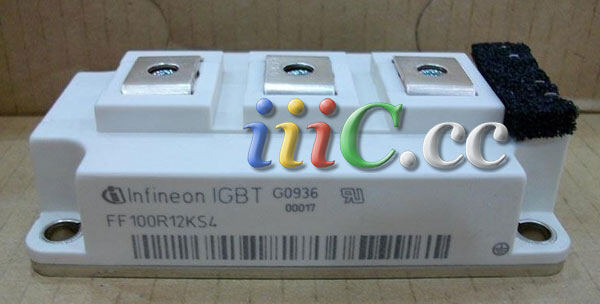

FF100R12KS4
RoHS
/
Package /
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
Trans IGBT Module N-CH 1.2KV 150A 7-pin 62MM-1
PDF
/
Buying Options
Total Price: USD $78.8
Unit Price: USD $78.8006
≥1 USD $78.8006
≥10 USD $64.657
≥100 USD $62.63635
≥500 USD $60.6157
≥1000 USD $58.596
Inventory: 1155
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
VCEsat-Max 3.7 V
Gate-Emitter Voltage-Max 20V
Collector-Emitter Voltage-Max 1200V
Turn Off Time-Nom (toff) 590 ns
Collector Current-Max (IC) 150A
Turn On Time 180 ns
Power Dissipation-Max (Abs) 780W
Polarity/Channel Type N-CHANNEL
Case Connection ISOLATED
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Number of Elements 2
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
JESD-30 Code R-XUFM-X7
Pin Count 7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Subcategory Insulated Gate BIP Transistors
ECCN Code EAR99
Pbfree Code icon-pbfree yes
Physical
Transistor Element Material SILICON
Number of Terminals 7
Surface Mount NO
