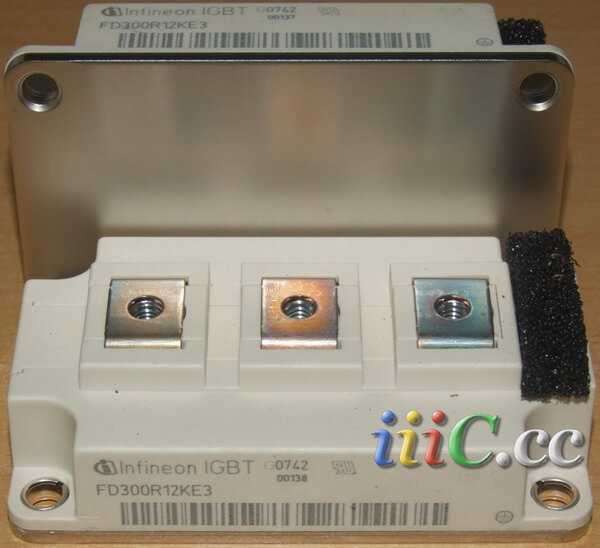

FD300R12KE3
RoHS
/
Package /
Category Discrete Semiconductor Products / Transistors - IGBTs - Modules
Description
Trans IGBT Module N-CH 1.2KV 480A 5-pin 62MM-1
PDF
/
Buying Options
Total Price: USD $145.79
Unit Price: USD $145.786555
≥1 USD $145.786555
≥10 USD $137.534491
≥100 USD $129.749521
≥500 USD $122.405207
≥1000 USD $115.476606
Inventory: 1139
Minimum: 1
-
+
Technical Details
Physical
Surface Mount NO
Number of Terminals 5
Transistor Element Material SILICON
Technical
Pbfree Code icon-pbfree yes
ECCN Code EAR99
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 5
JESD-30 Code R-XUFM-X5
Qualification Status Not Qualified
Operating Temperature (Max) 150°C
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Case Connection ISOLATED
Polarity/Channel Type N-CHANNEL
Turn On Time 400 ns
Collector Current-Max (IC) 480A
Turn Off Time-Nom (toff) 830 ns
Collector-Emitter Voltage-Max 1200V
Compliance
RoHS Status RoHS Compliant
Alternative Model
