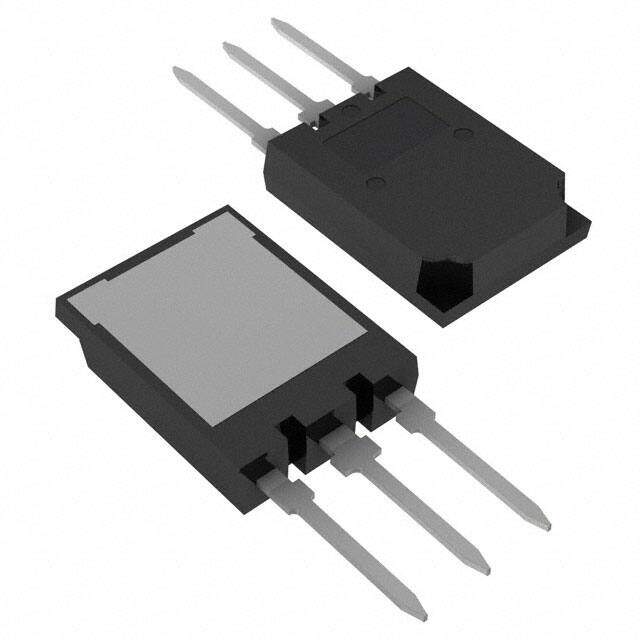

SIHS20N50C-E3
RoHS
RoHS compliant
RoHS compliantPackage TO-274AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 500V 20A 3-Pin(3+Tab) TO-247AC
PDF
/
Inventory: 9200
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-274AA
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2016
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Terminal Position SINGLE
Pin Count 3
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max 250mW Tc
Operating Mode ENHANCEMENT MODE
Turn On Delay Time 80 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 270m Ω @ 10A, 10V
Vgs(th) (Max) @ Id 5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 2942pF @ 25V
Current - Continuous Drain (Id) @ 25°C 20A Tc
Gate Charge (Qg) (Max) @ Vgs 76nC @ 10V
Rise Time 27ns
Drain to Source Voltage (Vdss) 500V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±30V
Fall Time (Typ) 44 ns
Turn-Off Delay Time 32 ns
Continuous Drain Current (ID) 20A
JEDEC-95 Code TO-247AC
Gate to Source Voltage (Vgs) 30V
Drain-source On Resistance-Max 0.27Ohm
Pulsed Drain Current-Max (IDM) 80A
DS Breakdown Voltage-Min 500V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
