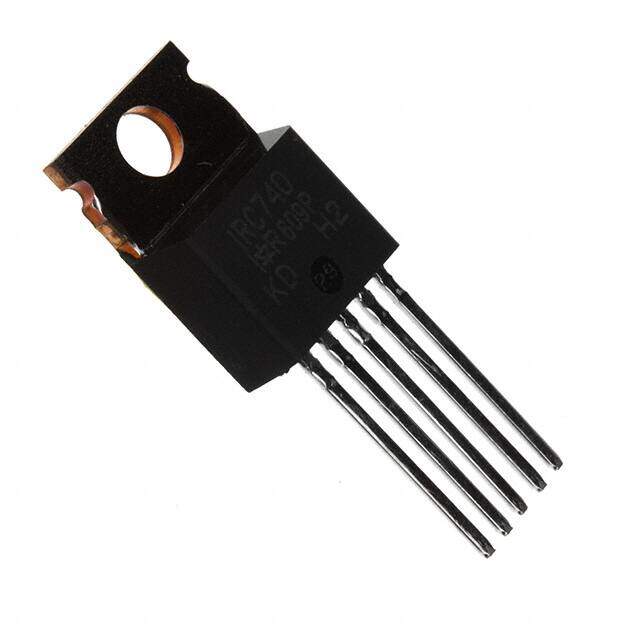

IRC740PBF
RoHS
RoHS compliant
RoHS compliantPackage TO-220-5
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 400V 10A TO-220-5
PDF
/
Inventory: 8518
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Technical
FET Feature Current Sensing
Avalanche Energy Rating (Eas) 210 mJ
Pulsed Drain Current-Max (IDM) 40A
Drain to Source Breakdown Voltage 400V
Drain-source On Resistance-Max 0.55Ohm
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 10A
Turn-Off Delay Time 54 ns
Fall Time (Typ) 24 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 25ns
Gate Charge (Qg) (Max) @ Vgs 66nC @ 10V
Current - Continuous Drain (Id) @ 25°C 10A Tc
Input Capacitance (Ciss) (Max) @ Vds 1200pF @ 25V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 550m Ω @ 6A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 14 ns
Case Connection DRAIN
Power Dissipation 125W
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 125W Tc
Configuration SINGLE
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSFM-T5
Pin Count 5
Time@Peak Reflow Temperature-Max (s) 40
Current Rating 10A
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) 260
Terminal Position SINGLE
Technology MOSFET (Metal Oxide)
Voltage - Rated DC 400V
Subcategory FET General Purpose Power
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series HEXFET?
Published 1997
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Package / Case TO-220-5
Mounting Type Through Hole
Mount Through Hole
