2N6661-E3
RoHS
RoHS compliant

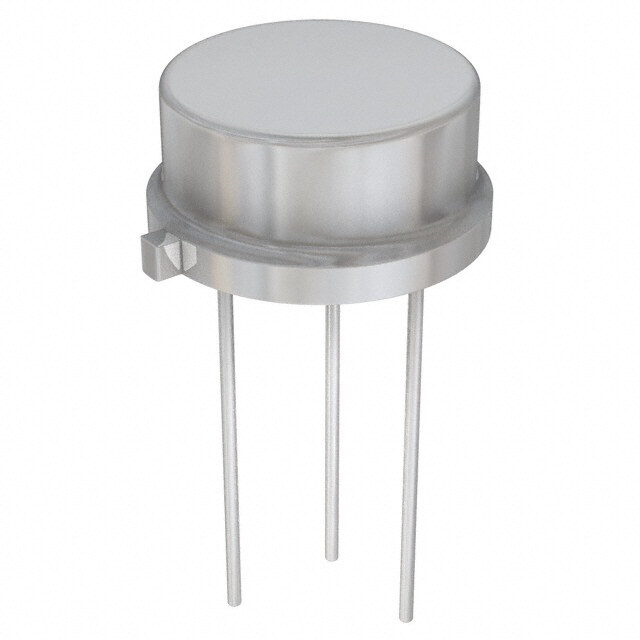

RoHS compliantPackage TO-205AD, TO-39-3 Metal Can
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 90V 0.86A 3-Pin TO-205AD
PDF
/
Inventory: 8262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Gate to Source Voltage (Vgs) 20V
Drain to Source Breakdown Voltage 90V
Input Capacitance 50pF
Continuous Drain Current (ID) 860mA
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 5V 10V
Drain to Source Voltage (Vdss) 90V
Current - Continuous Drain (Id) @ 25°C 860mA Tc
Input Capacitance (Ciss) (Max) @ Vds 50pF @ 25V
Vgs(th) (Max) @ Id 2V @ 1mA
Rds On (Max) @ Id, Vgs 4Ohm @ 1A, 10V
FET Type N-Channel
Power Dissipation 725mW
Element Configuration Single
Power Dissipation-Max 725mW Ta 6.25W Tc
Number of Channels 1
Number of Elements 1
Technology MOSFET (Metal Oxide)
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2014
Packaging Tube
Operating Temperature -55°C~150°C TJ
Rds On Max 4 Ω
Drain to Source Resistance 4Ohm
Physical
Supplier Device Package TO-39
Number of Pins 3
Package / Case TO-205AD, TO-39-3 Metal Can
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 8.15mm
Length 9.4mm
Height 6.6mm
