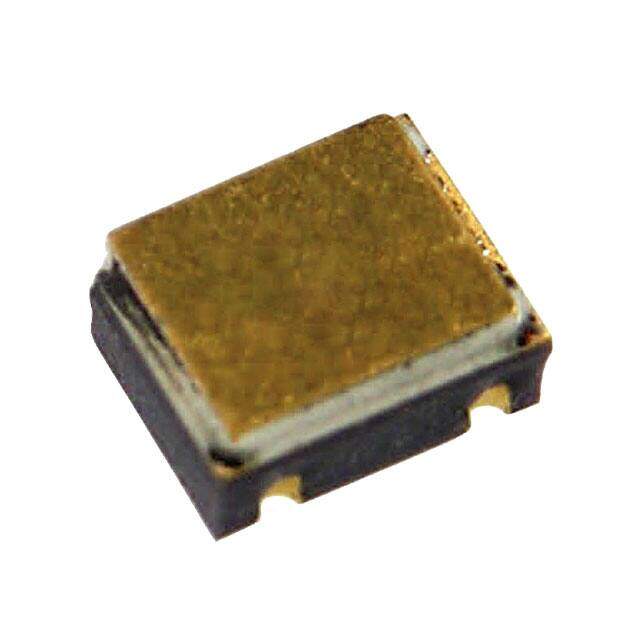

HCT7000M
RoHS
/
Package 3-SMD, No Lead
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 60V 200MA SMD
PDF
/
Inventory: 1185
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 3-SMD, No Lead
Number of Pins 3
Supplier Device Package 3-SMD
Technical
Operating Temperature -55°C~150°C TJ
Packaging Bulk
Published 1997
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 300mW Ta
Element Configuration Single
Power Dissipation 300mW
Turn On Delay Time 10 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id 3V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds 60pF @ 25V
Current - Continuous Drain (Id) @ 25°C 200mA Ta
Drain to Source Voltage (Vdss) 60V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±40V
Turn-Off Delay Time 10 ns
Continuous Drain Current (ID) 200mA
Gate to Source Voltage (Vgs) 40V
Input Capacitance 60pF
Drain to Source Resistance 5Ohm
Rds On Max 5 Ω
Dimensions
Height 1.3716mm
Length 3.175mm
Width 2.667mm
Compliance
RoHS Status Non-RoHS Compliant
