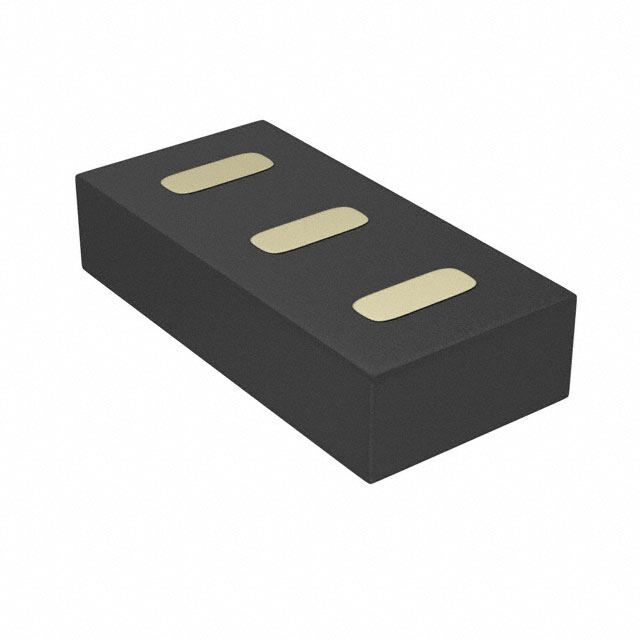

CSD25485F5T
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD, No Lead
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
-20V, P ch NexFET MOSFET?, single LGA 0.8x1.5, 42mOhm 3-PICOSTAR -55 to 150
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.69872
≥100 USD $0.543136
Inventory: 1139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 3-SMD, No Lead
Surface Mount YES
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Series FemtoFET?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Technology MOSFET (Metal Oxide)
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number CSD25485
Number of Elements 1
Power Dissipation-Max 1.4W Ta
Element Configuration Single
Operating Mode ENHANCEMENT MODE
FET Type P-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 35m Ω @ 900mA, 8V
Vgs(th) (Max) @ Id 1.3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 533pF @ 10V
Current - Continuous Drain (Id) @ 25°C 5.3A Ta
Gate Charge (Qg) (Max) @ Vgs 3.5nC @ 4.5V
Drain to Source Voltage (Vdss) 20V
Drive Voltage (Max Rds On,Min Rds On) 1.8V 8V
Vgs (Max) -12V
Drain-source On Resistance-Max 0.07Ohm
DS Breakdown Voltage-Min 20V
Dimensions
Length 1.49mm
Width 730μm
Thickness 338μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
