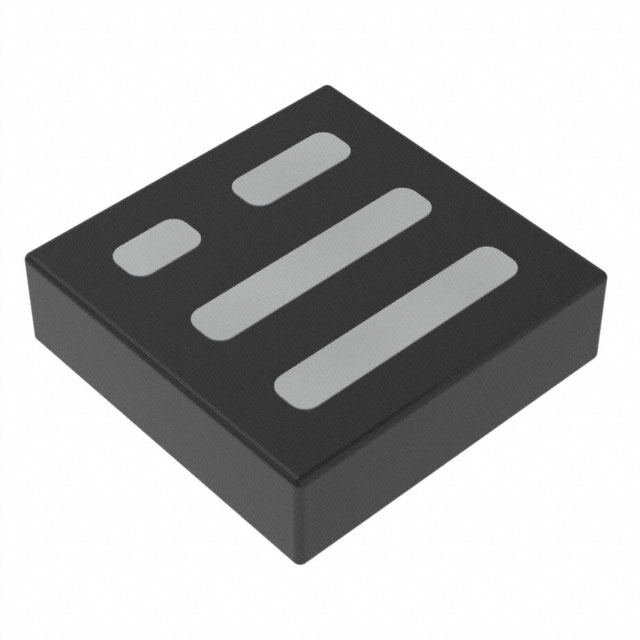

CSD22205L
RoHS
RoHS compliant
RoHS compliantPackage 4-XFLGA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
NexFET? Tape & Reel (TR) Surface Mount P-Channel Mosfet Transistor 7.4A Ta 71A 600mW Ta 8V
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.267582
≥1 USD $0.267582
≥10 USD $0.216119
≥100 USD $0.191003
≥500 USD $0.168595
≥1000 USD $0.6175
Inventory: 748
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 330μm
Width 1.16mm
Length 1.16mm
Technical
Feedback Cap-Max (Crss) 250 pF
DS Breakdown Voltage-Min 8V
Pulsed Drain Current-Max (IDM) 71A
Vgs (Max) -6V
Drive Voltage (Max Rds On,Min Rds On) 1.5V 4.5V
Drain to Source Voltage (Vdss) 8V
Gate Charge (Qg) (Max) @ Vgs 8.5nC @ 4.5V
Current - Continuous Drain (Id) @ 25°C 7.4A Ta
Input Capacitance (Ciss) (Max) @ Vds 1390pF @ 4V
Vgs(th) (Max) @ Id 1.05V @ 250μA
Rds On (Max) @ Id, Vgs 9.9m Ω @ 1A, 4.5V
Transistor Application SWITCHING
FET Type P-Channel
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 600mW Ta
Number of Elements 1
Base Part Number CSD22205
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position BOTTOM
Technology MOSFET (Metal Oxide)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series NexFET?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 4
Surface Mount YES
Package / Case 4-XFLGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 16 Weeks
