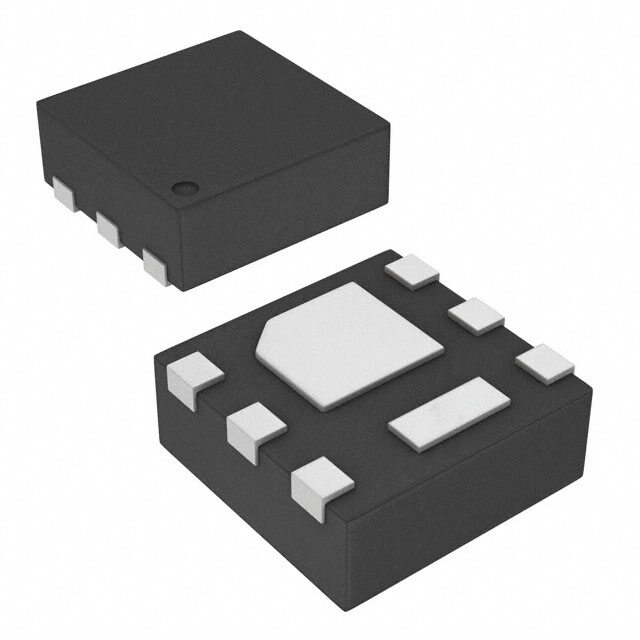

CSD19538Q2
RoHS
RoHS compliant
RoHS compliantPackage 6-WDFN Exposed Pad
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET NCH 100V 14.4A SON
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.39864
≥100 USD $0.277288
≥500 USD $0.216515
≥1000 USD $0.175982
Inventory: 15544
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 750μm
Width 2mm
Length 2mm
Technical
Avalanche Energy Rating (Eas) 8 mJ
DS Breakdown Voltage-Min 100V
Pulsed Drain Current-Max (IDM) 34.4A
Drain-source On Resistance-Max 0.072Ohm
Continuous Drain Current (ID) 14.4A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 6V 10V
Drain to Source Voltage (Vdss) 100V
Gate Charge (Qg) (Max) @ Vgs 5.6nC @ 10V
Current - Continuous Drain (Id) @ 25°C 14.4A Ta
Input Capacitance (Ciss) (Max) @ Vds 454pF @ 50V
Vgs(th) (Max) @ Id 3.8V @ 250μA
Rds On (Max) @ Id, Vgs 59m Ω @ 5A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 2.5W Ta 20.2W Tc
Number of Elements 1
Base Part Number CSD19538
Terminal Form NO LEAD
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Additional Feature AVALANCHE RATED
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series NexFET?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 6
Package / Case 6-WDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 16 Weeks
Alternative Model
