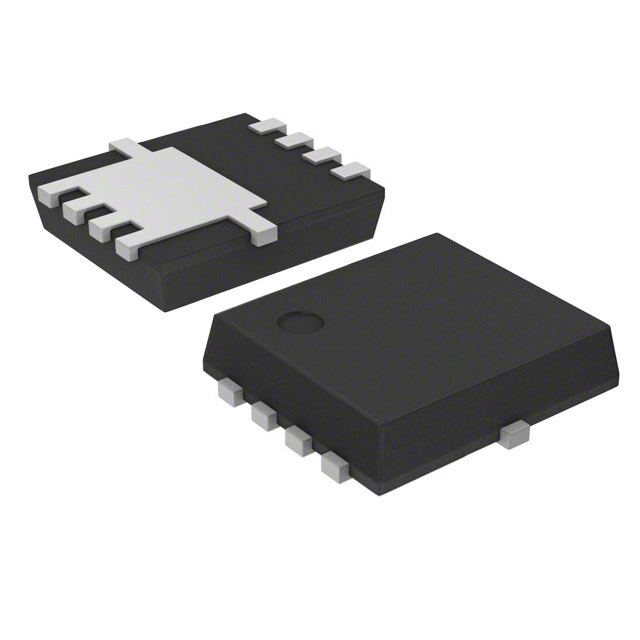

CSD17577Q3A
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 30V 35A 8VSON
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.4796
≥100 USD $0.331936
≥500 USD $0.277376
≥1000 USD $0.236069
Inventory: 1356
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 800μm
Width 3.3mm
Length 3.3mm
Height 900μm
Technical
Max Junction Temperature (Tj) 150°C
Avalanche Energy Rating (Eas) 39 mJ
DS Breakdown Voltage-Min 30V
Pulsed Drain Current-Max (IDM) 239A
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 35A
Turn-Off Delay Time 20 ns
Fall Time (Typ) 4 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Drain to Source Voltage (Vdss) 30V
Rise Time 31 ns
Gate Charge (Qg) (Max) @ Vgs 35nC @ 10V
Current - Continuous Drain (Id) @ 25°C 35A Ta
Input Capacitance (Ciss) (Max) @ Vds 2310pF @ 15V
Vgs(th) (Max) @ Id 1.8V @ 250μA
Rds On (Max) @ Id, Vgs 4.8m Ω @ 16A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 4 ns
Case Connection DRAIN
Power Dissipation 53W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 2.8W Ta 53W Tc
Number of Channels 1
Number of Elements 1
Base Part Number CSD17577
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Additional Feature AVALANCHE RATED
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series NexFET?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 8
Package / Case 8-PowerVDFN
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
