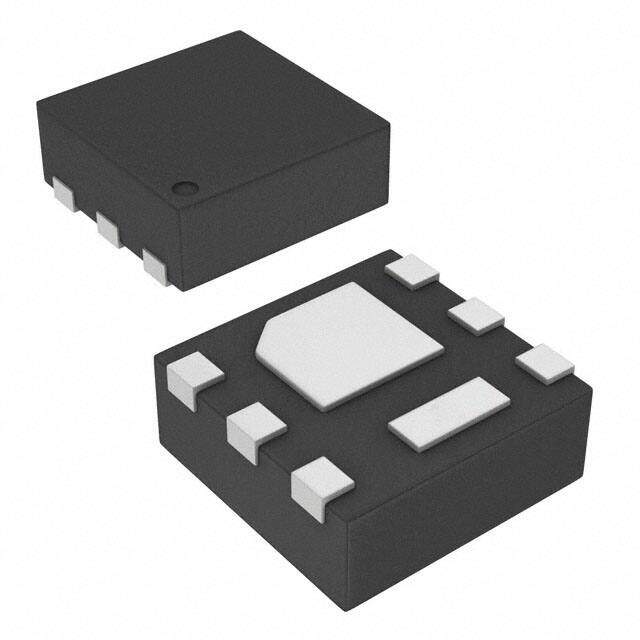

CSD13202Q2
RoHS
RoHS compliant
RoHS compliantPackage 6-VDFN Exposed Pad
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 12V 76A 6SON
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.4224
≥100 USD $0.29348
≥500 USD $0.229134
≥1000 USD $0.186252
Inventory: 1327
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 750μm
Width 2mm
Length 2mm
Technical
Avalanche Energy Rating (Eas) 20 mJ
Drain to Source Breakdown Voltage 12V
Gate to Source Voltage (Vgs) 8V
Threshold Voltage 800mV
Continuous Drain Current (ID) 22A
Turn-Off Delay Time 11 ns
Fall Time (Typ) 13.6 ns
Vgs (Max) ±8V
Drive Voltage (Max Rds On,Min Rds On) 2.5V 4.5V
Rise Time 28 ns
Gate Charge (Qg) (Max) @ Vgs 6.6nC @ 4.5V
Current - Continuous Drain (Id) @ 25°C 22A Ta
Input Capacitance (Ciss) (Max) @ Vds 997pF @ 6V
Vgs(th) (Max) @ Id 1.1V @ 250μA
Rds On (Max) @ Id, Vgs 9.3m Ω @ 5A, 4.5V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 4.5 ns
Case Connection DRAIN
Power Dissipation 2.7W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 2.7W Ta
Number of Channels 1
Number of Elements 1
Base Part Number CSD13302
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
Additional Feature AVALANCHE RATED
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series NexFET?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 6
Package / Case 6-VDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
