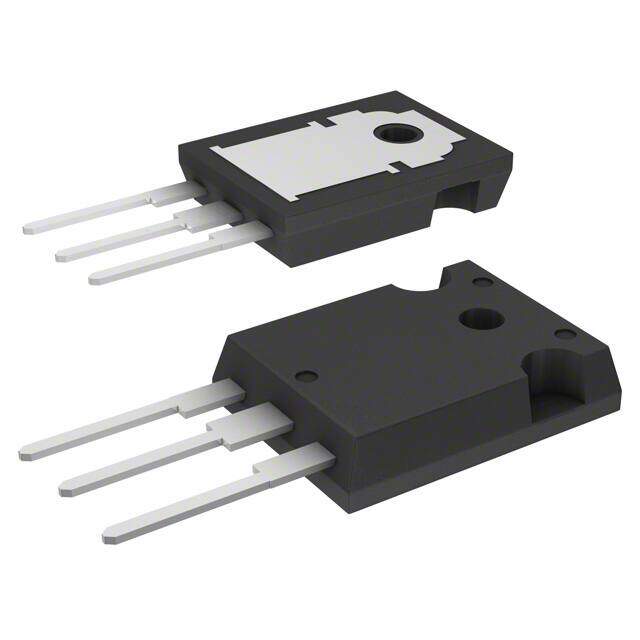

STW7NK90Z
RoHS
RoHS compliant
RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-Ch 900 Volt 6 Amp Zener SuperMESH
PDF
/
Buying Options
Total Price: USD $34.82
Unit Price: USD $3.4821
≥10 USD $3.4821
≥100 USD $3.285
Inventory: 125
Minimum: 10
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 5.15mm
Length 15.75mm
Height 20.15mm
Technical
Drain to Source Breakdown Voltage 900V
Gate to Source Voltage (Vgs) 30V
Threshold Voltage 3.75V
Continuous Drain Current (ID) 2.9A
Turn-Off Delay Time 20 ns
Fall Time (Typ) 20 ns
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 45 ns
Gate Charge (Qg) (Max) @ Vgs 60.5nC @ 10V
Current - Continuous Drain (Id) @ 25°C 5.8A Tc
Input Capacitance (Ciss) (Max) @ Vds 1350pF @ 25V
Vgs(th) (Max) @ Id 4.5V @ 100μA
Rds On (Max) @ Id, Vgs 2 Ω @ 2.9A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 17 ns
Power Dissipation 140W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 140W Tc
Number of Elements 1
Pin Count 3
Base Part Number STW7N
Current Rating 5.8A
Technology MOSFET (Metal Oxide)
Voltage - Rated DC 900V
Subcategory FET General Purpose Power
Additional Feature AVALANCHE RATED, HIGH VOLTAGE
Terminal Finish Tin (Sn)
Resistance 2Ohm
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series SuperMESH?
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-247-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 12 Weeks
Alternative Model
