STW45N60DM6
RoHS
/

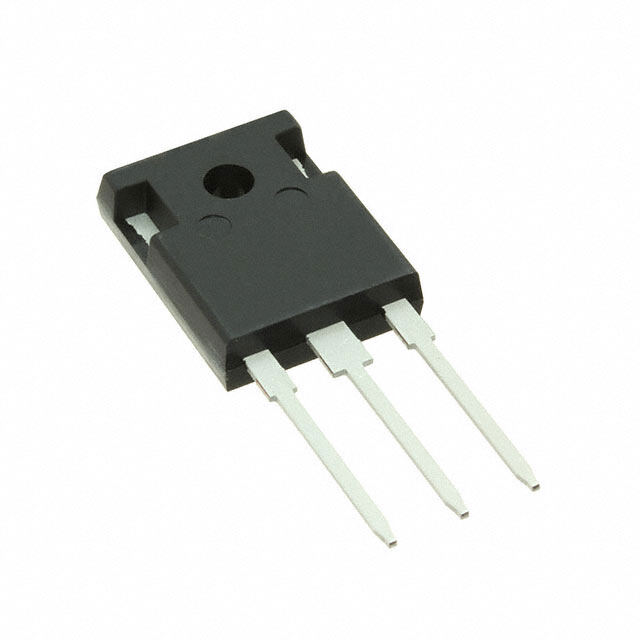

Package TO-247-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET
PDF
/
Buying Options
Total Price: USD $76.27
Unit Price: USD $76.266
≥1 USD $76.266
≥10 USD $62.57745
≥100 USD $60.6214
≥500 USD $58.6663
≥1000 USD $56.71025
Inventory: 1346
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Vgs (Max) ±25V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 600V
Gate Charge (Qg) (Max) @ Vgs 44nC @ 10V
Current - Continuous Drain (Id) @ 25°C 30A Tc
Input Capacitance (Ciss) (Max) @ Vds 1920pF @ 100V
Vgs(th) (Max) @ Id 4.75V @ 250μA
Rds On (Max) @ Id, Vgs 99m Ω @ 15A, 10V
FET Type N-Channel
Power Dissipation-Max 210W Tc
Base Part Number STW45N
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MDmesh? DM6
Operating Temperature -55°C~150°C TJ
Physical
Package / Case TO-247-3
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 16 Weeks
