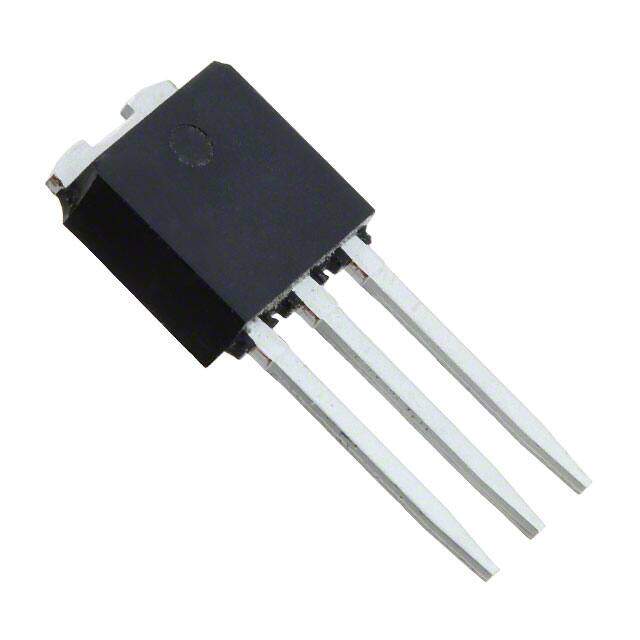

STU95N2LH5
RoHS
RoHS compliant
RoHS compliantPackage TO-251-3 Short Leads, IPak, TO-251AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 25V 80A TO220-3
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.26885
≥1 USD $0.26885
≥10 USD $0.2204
≥100 USD $0.21375
≥500 USD $0.2071
≥1000 USD $0.20045
Inventory: 1130
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 2.4mm
Length 6.6mm
Height 6.9mm
Technical
Drain to Source Breakdown Voltage 25V
Drain-source On Resistance-Max 0.007Ohm
Drain Current-Max (Abs) (ID) 80A
Gate to Source Voltage (Vgs) 22V
Threshold Voltage 1V
Continuous Drain Current (ID) 40A
Turn-Off Delay Time 22 ns
Fall Time (Typ) 7 ns
Vgs (Max) ±25V
Drive Voltage (Max Rds On,Min Rds On) 5V 10V
Rise Time 38ns
Gate Charge (Qg) (Max) @ Vgs 13.4nC @ 5V
Current - Continuous Drain (Id) @ 25°C 80A Tc
Input Capacitance (Ciss) (Max) @ Vds 1817pF @ 25V
Vgs(th) (Max) @ Id 1V @ 250μA
Rds On (Max) @ Id, Vgs 4.9m Ω @ 40A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 7 ns
Case Connection DRAIN
Power Dissipation 70W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 70W Tc
Number of Elements 1
Pin Count 3
Base Part Number STU95
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series STripFET? V
Packaging Tube
Operating Temperature -55°C~175°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Mounting Type Through Hole
Mount Through Hole
Alternative Model
